HIGHLIGHTS
INDUSTRIAL-GRADE DESIGN
⚫ High-performance industrial-grade CPU
⚫ High-performance industrial-grade wireless communication module
⚫ Metal casing, IP30 protection level, suitable for most industrial control applications.
⚫ Wide range power input (DC 5~36V)
STABLE & RELIABLE
⚫ WDT protection, ensure system stability
⚫ Multiple protection mechanism to ensure system stability, always keeping online
⚫ Ethernet interface with built-in 15KV ESD
⚫ RS232/RS485 with built-in 15KV ESD

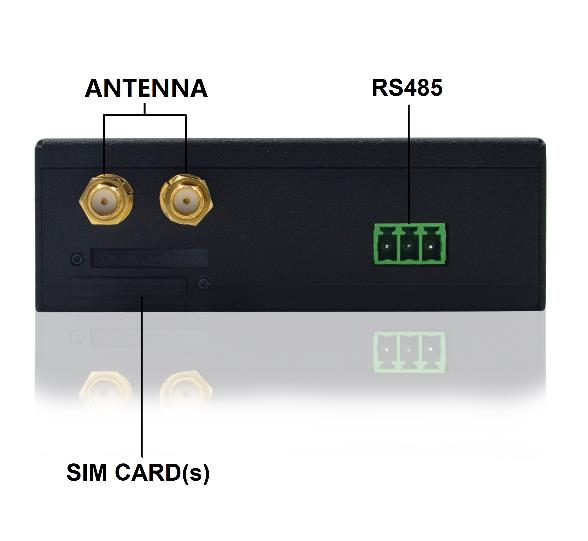

⚫ SIM/UIM card slot with built-in 15KV ESD
⚫ Power interface with built-in phase-reversal and over-voltage protection
⚫ Antenna interface with lightning protection (optional)
STANDARD INTERFACE & EASY-TO-USE

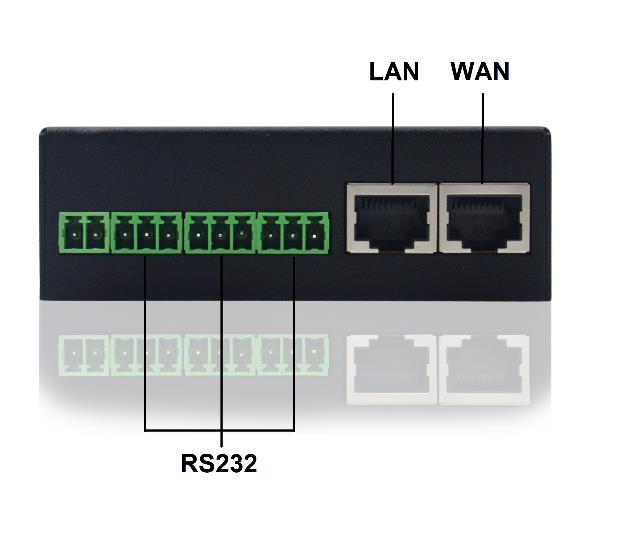

⚫ Standard RS232/RS485, ethernet and WIFI interface, can be connected to the serial
device, ethernet devices and WIFI devices
⚫ Standard wired WAN interface (support standard PPPOE protocol)
⚫ Intelligent data terminal, automatically enter transmission status after power-on
⚫ Powerful central management software for easy device management (optional)
⚫ Easy to use and flexible, has multiple working modes
⚫ Convenient system configuration and maintenance interface (including local and remote
WEB or CLI access) F3X26-TB SPECIFICATIONS
POWERFUL FUNCTIONS
⚫ Support dual-link intelligent switching function between primary card and backup card
(dual-SIM version)
⚫ Support various WAN connection type, including static IP, DHCP, PPPOE, 2.5G/3G/4G
⚫ Support LTE and wired WAN dual-link intelligent switching backup function (optional)
⚫ Support VPN server/client (PPTP, L2TP, IPSEC, OPENVPN, GRE) (VPN version only)
⚫ Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.
⚫ Support upgrade software locally and remotely
⚫ Support NTP
⚫ Support various DDNS
⚫ Support MAC address clone, PPPoE server
⚫ Support 802.11 b / g / n WIFI network, support WIFI AP, AP Client, Bridge and various
working mode (optional)
⚫ WIFI support variety types of encryption such as WEP, WPA and WPA2. Support MAC
address filtering.
⚫ Support various online/offline trigger modes, including SMS, phone ringing, serial data,
network data to trigger.
⚫ Support APN/VPDN
⚫ Support multi-way DHCP server and DHCP client, DHCP bound with MAC address,
DDNS, firewall, NAT, DMZ, QoS, traffic statistics, real-time transfer rate monitoring
⚫ Support various network protocols including TCP/IP, UDP, FTP (optional), HTTP, etc.
⚫ Support SPI firewall, VPN traversal, access control, URL filtering, etc.F3X26-TB SPECIFICATIONS
