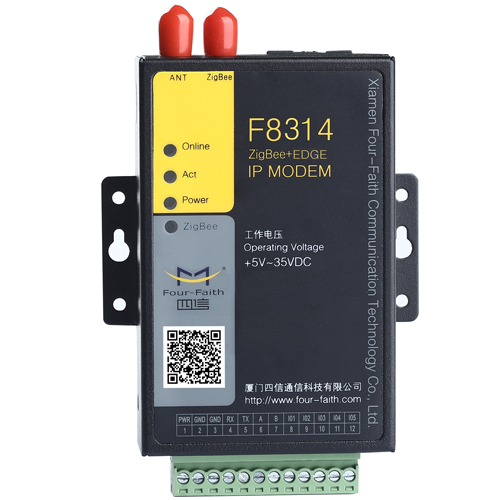

F8314 ZigBee+EDGE IP MODEM
|
|
F8314 ZigBee+EDGE IP MODEM is a kind of data terminal device that provides data transfer function by public EDGE and ZigBee network. It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.。
|
|
 |
| |
| Environmental Adaptability |
| Designed for harsh and unattended environment |
|
 |
| |
 |
|
Powerful network conversion capability
|
|
ZigBee to TCP/IP protocol (4G/3G/2.5G network) implement two kinds of network communication agreement
|
|
| |
|
ModbusIntegrated Modbus standard protocol
|
|
Remote PC can collect and transfer the data by 4G/3G/2.5G and ZigBee network.
|
|
 |
| |
 |
|
Simultaneous transmission of multiple data centers
|
|
Zigbee ip modem support multiple data transmission and multi-data center backup center synchronous transmission (five data centers), applicable to rapid or large transmission of information
|
|
| |
|
Reliable networking and transparent data communication
|
|
Using high-performance industrial grade wireless modulehigh stability and high precision industrial grade components, a very wide temperature design, easy to adapt to cold temperature working environment that supports transparent data transmission, can adapt to any standard or non-standard user protocol.。
|
|
 |
| |
 |
| WDT watchdog |
|
Running protection system management and effective monitoring to ensure system stability.
|
|
| |
|
|
Rich interfaces, convenient for customers to use
|
|
Provide 5 x I/O, can achieve 5 digital input and output; Compatible with 3 pulse outputs, 3 analog inputs, 2 pulse counting function. Provide a standard RS232, RS485 interface for direct connection of serial devices.
|
。
|
 |
