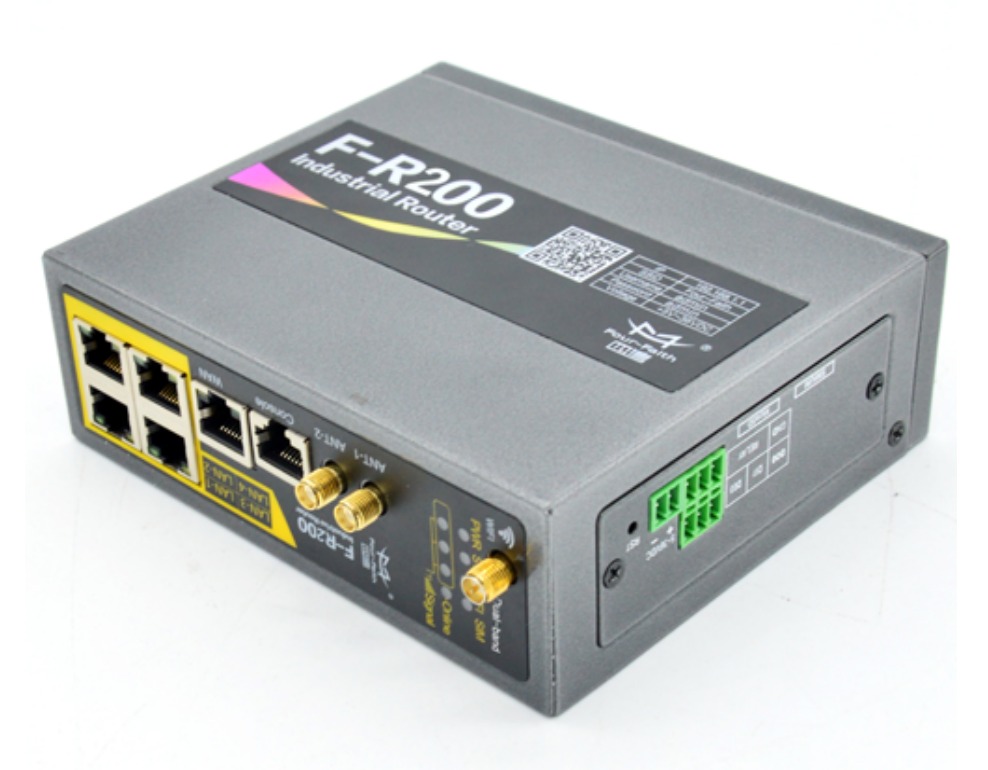

Cellular Wireless Router F-R200

4G Cellular Router F-R100

4G Cellular Router

●  Industrial router, 4G cellular router, serial and I/O for connecting diverse field assets
●  4G cellular Router secure your data using a variety of VPN tunneling schemes
●  4G cellular Router support Din-Rail or wall mounting or desktop
●  Maximizes uptime by seamlessly switching between the multiple Internet interfaces

Trial Sample

Features
Specifications
Download

1	Advanced Failover
	Maximise uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, Wi-Fi, dual-SIM)
2	Multiple Tunnelling Schemes
	4G cellular router Secure your data using a variety of VPN tunnelling schemes, including IPSec, L2TP, PPTP, Open VPN and GRE
3	Flexible Wi-Fi
	802.11 b/g/n, configurable Wi-Fi as WAN or access point, Wi-Fi Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID
4	Serial Port
	Industrial 4g cellular router Ethernet, serial and I/O for connecting diverse field assets
5	Support devices configuration, upgrade and maintenance remotely, greatly improve the efficiency of management
	Four-Faith Remote Manager provides mass configuration, device management, OTA update, and troubleshooting tools and 4g cellular router communication 3g 4g network.

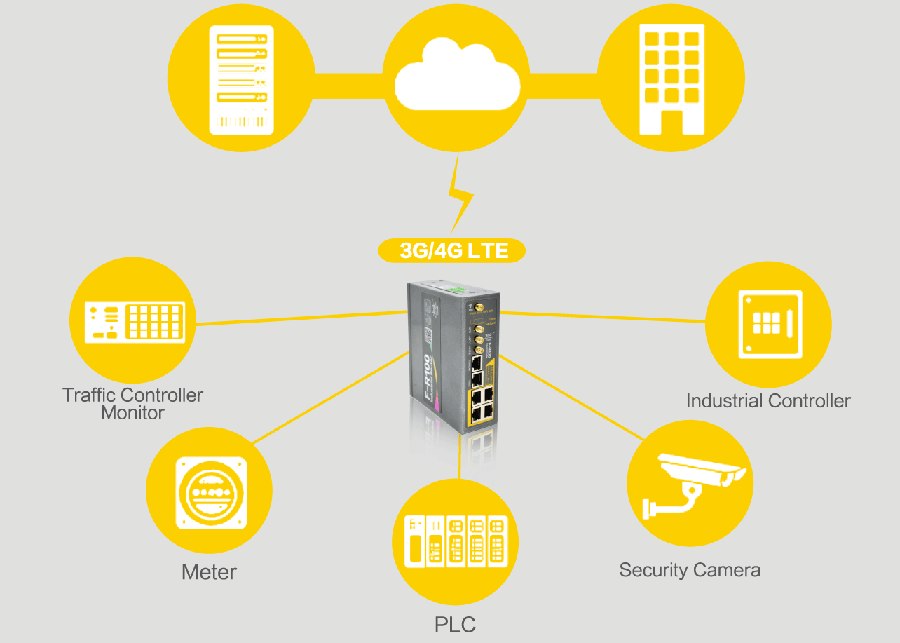

M2M Applications

4G Cellular Router

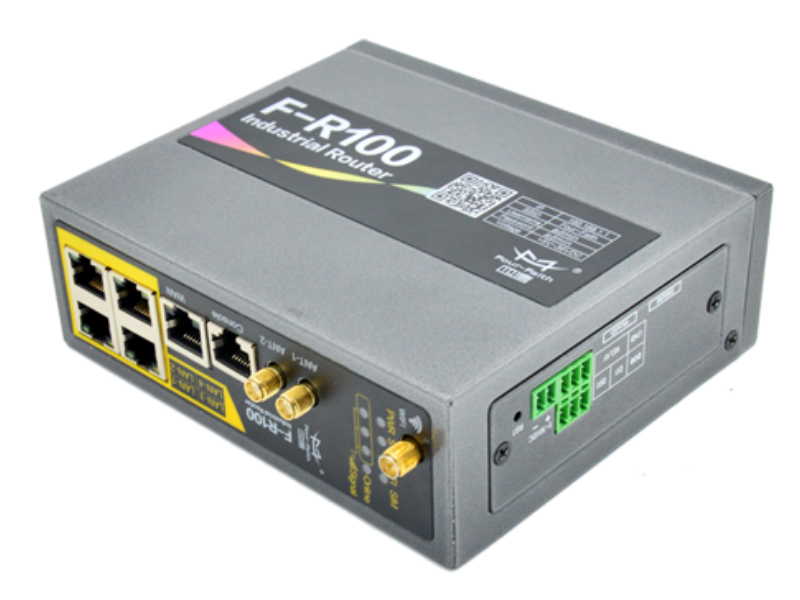

Four-Faith 4G Cellular Router F-R100

Din Rail bonding is an intelligent industrial 4g cellular router designed for industrial applications requiring faultless connectivity. It provides a secure, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering etc. Software-defined, multi-carrier networking, dual SIM models, 802.11n and global 2.5G/3G/HSPA+/LTE options make it easy to get connected. With DIN-rail mounting, wide operating temperature range, and IP30 metal housing, the F-R100 is a convenient yet reliable solution for any industrial wireless application.

CELLULAR WAN	Supported Frequency Bands LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28 WCDMA: 2100(B1), 1900(B2), 850(B5) EV-DO/CDMA: 800(BC0) GSM/GPRS/EDGE: 850/900/1800/1900 Automatic SIM based network operator switching
HOST INTERFACES	10/100 Base-T RJ45 Ethernet port RS-232 or RS-485 Serial Console Port 3 SMA antenna connectors (WI-FI and Double-cellular) Active GPS/ZigBee antenna support (option) (6) pin 3.5mm terminal block
INPUT/OUTPUT	(6) pin 3.5mm terminal block (2) DI, (1) DO, (1) Relay. Input ON Voltage: 5 to 30 VDC Input OF Voltage: 0 to 3 VDC Output < 50mA @ 30VDC
LAN	DNS, DNS Proxy DHCP Server IP Passthrough (option) VLAN Host Interface Watchdog PPPoE
SERIAL	TCP/U DP PAD Mode Modbus (ASCII, DTU, Variable) PPP Reverse Telnet
WI-FI	IEEE802.11 b/g/n, AP and client mode. Adjustable output power (Max: 26dBm) Access point for up to 30 clients Simultaneous access point/client mode WEP, WPA-PSK, WPA2-PSK etc. Security
NETWORK AND ROUTING	Network Address Translation (NAT) Port Forwarding Host Port Routing VRRP Reliable Static Route Dynamic DNS
VPN	IPsec, GRE, and OPENVPN Client Up to 10 concurrent tunnels Split Tunnel Dead Peer Detection (DPD) Multiple Subnets VPN Failover
SECURITY	Remote Authentication DMZ Inbound and Outbound Port filtering Inbound and Outbound Trusted IP MAC Address Filtering PCI DSS V3.0 compatible
GPS (Option)	Antenna Interface: SMA Female, 50 ohms impedance Tracking Sensitivity: better than -144 dBm Horizontal position accuracy: 2.5 m Time-To-First-Fix: 29 s Protocol: NMEA-0183 V2.3
EVENTS ENGINE (Option)	Custom event triggers and reports Configurable interface, no programming Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV) Event Actions: Drive Relay Output
Four-Faith MANAGEMENT SERVICE	Secure cloud-based device management application Remote provisioning Gateway configuration and template management Configurable monitoring and alerting Software and radio module firmware updates Auto configuration
MANAGEMENT INTERFACES	Web-Based User Interface Device Configuration Templates Software and radio module firmware updates AT Command Line Interface (Telnet/SSH/Serial) SMS Commands (Option) SNMP
Operating Environment	Operating Temperature: -35°C to +75°C / -31°F to +167°F Storage Temperature: -40°C to 85°C / -40°F to 185°F Humidity: 90% RH @ 60°C
DIMENSIONS	Housing & Weight: Metal, **g Dimension: (L x W x H): 133 x 115.7 x 45 mm Installation: 34.6 mm Din-Rail or wall mounting or desktop

Specification

F-R100 4G Industrial Router Specification-v3.0.0

User Manual

F-R100 3G 4G Cellular Router Din Rail bonding USER MANUAL V1.0.0.pdf
