5G SIM WiFi Router F-NR120

5G SIM WiFi Router

● Wide power input: DC 9-36V

● Dual-band wifi: 2.4Ghz & 5.8Ghz

● Outer shell: metal shell, IP30 protection level

● Ports: RS232, RS485, Ethernet WAN ( LAN), Wifi, CAN

● CPU: industrial-grade 32-bit processor & wireless module

● Software platform: embedded real-time operating system

● Application: M2M fields of the IoT industry, smart factories, etc.

● Function: transmitting long-distance wireless big data, Beidou & GPS positioning

Trial Sample

Features
Specifications
Download

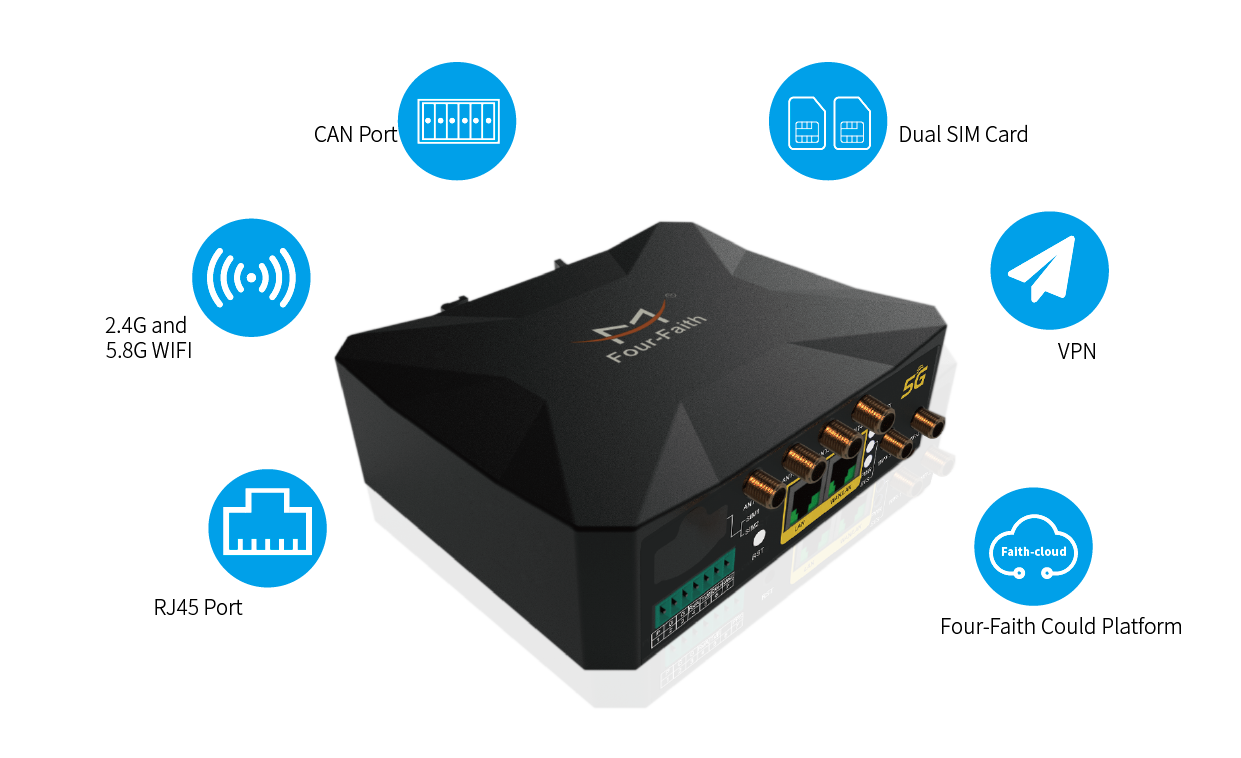

Four-Faith 5G Sim Wifi Router F-NR120

● Four-Faith's F-NR120 is an IoT wireless communication router that transmits long-distance wireless big data through public networks for users in real IoT solution application scenarios.

● Thanks to its durability in harsh environments, F-NR120 has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, meteorological forecast, and environmental protection, etc.

● With RS232 (or RS485), and Ethernet WAN (or LAN) ports, F-NR120 has the capacity to connect multiple devices simultaneously for big data transmission

5G SIM WiFi Router

Project	Content
Wireless	Industrial wireless module
Frequency	5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 Remarks: Different modules support different network standards
Bandwidth	5G NR：DL 3.4Gbps,UL 350Mbps LTE Cat20：DL 2.0Gbps,UL 150Mbps HSPA+：DL 42Mpbs,UL5.76Mbps
Power	<23dBm
Sensitive	<-97dBm

Project	Content
Frequency	IEEE802.11b/g/n,2.4G,AP mode,Station mode（option） IEEE802.11ac,5.8G,AP mode,Station mode（option）
Bandwidth	IEEE802.11b/g：54Mbps IEEE802.11n：300Mbps IEEE802.11ac：866Mbps
Encryption	WEP、WPA、WPA2
Power	26dBm（11b）,21dBm（11ac/MCS7/HT40）,20dBm（11ac/MCS9/HT80）
Sensitive	<-72dBm@54Mpbs

Project	Content
CPU	Industrial 32 bit processor
FLASH	Nor flash 16MB,nand flash 128MB
DDR3	512MB

Project	Content
WAN	1*10/100/1000M Ethernet （RJ45）, Auto MDI/MDIX,Built-in 1.5KV electromagnetic isolation protection Remarks: Can be used as LAN port
LAN	1*10/100/1000M Ethernet （RJ45）, Auto MDI/MDIX,Built-in 1.5KV electromagnetic isolation protection
Serial	1*RS232/RS485,Built-in 1.5KV electromagnetic isolation protection Data bit：5、6、7、8 Stop bit：1、1.5(option)、2 Check：NONE、EVEN、ODD、SPACE(option) Baud rate：2400~115200bits/s
CAN	1*CAN2.0
Indicators	"WIFI", "Online","PWR", "SYS"
Antenna	Cellular：4 standard SMA female antenna interfaces, characteristic impedance 50 ohms WIFI：2 standard SMA male antenna interfaces, characteristic impedance 50 ohms GPS： 1 calibrated SMA female antenna interface, characteristic impedance 50 ohms (optional)
SIM/UIM	Standard drawer type user card interface, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection, support dual SIM card
Power	Terminal power socket
Reset button	Through this button, the parameter configuration can be restored to the factory value

Project	Content
Standard	DC 12V/1.5A
Range	DC 9~36V
Consumption	<1.2A (12V)

Project	Content
Shell	Metal shell, protection grade IP30
Size	13511043mm (Does not include antenna and mounting parts)
Weight	500g

Project	Content
Operating	-35~+75ºC（-31~+167℉）
Storage	-40~+85ºC（-40~+185℉）
humidity	95%(No condensation)

Project	Content
GPS module	Industrial GPS module
Receiver type	50 channels, GPS L1 (1575.42MHz) C/A code Support WAAS, EGNOS, MSAS, GAGAN, compatible with GALILEO
Maximum update rate	4Hz
Accuracy	Locate：2.5mCPE SBAS：2.0mCPE
Capture	Cold start: 29S Warm start: 29S Auxiliary start: <1S Hot start: <1S
Sensitive	Tracking: -160dBm Recapture: -160dBm Cold start: -144dBm
Timing accuracy	RMS：30ns 99%：<60ns Graininess：21ns
Time pulse	0.25~1000Hz
PPS	Support, the rising edge of the pulse is aligned with UTC time

Model	Content
F-NR120	Cellular (5G NR), 2.4G/5.8G WIFI, SIM*2 , GPS(option)
