Industrial WiFi Router F3X36Q

● Certification: CE

● Outer shell: metal, IP30 waterproof and dust-proof protection

● Network protocols: TCP/IP, UDP, HTTP

● Standard ports: RS232, RS485, Ethernet LAN/WAN, Wi-Fi

● CPU: industrial-grade 32-bit processor & wireless module

● System: watchdog design, complete mechanisms, stable operation

● Applied scenarios: M2M fields of the IoT industry, smart factories, etc.

● OS Linux

● VPN GRE IPsec

Trial Sample

Features
Specifications
Download

Four-Faith Industrial Wireless Router F3X36Q

● Four-Faith's F3X36Q is an IoT wireless communication router. It plays the role of transmitting long-distance wireless data through public networks in IoT-applied solutions and other smart interactive scenarios.

● The F3X36Q router adopts industrial-grade designs, including an industrial 32-bit processor and wireless module, with the watchdog system, which makes it suitable for industrial use and capable of keeping stable operation even in harsh industrial environments.

● With standard ports including RS232 and RS485, the F3X36Q industrial router has the capacity to connect multiple devices simultaneously for wireless data transmission.

● The F3X36Q industrial router has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, and environmental protection, etc.

Cellular Specification
Items	Contents
Cellular Module	Industrial grade wireless module
Standard and Band	Support：FDD-LTE, TD-LTE, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
Bandwidth	FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps DC-HSPA+: Downstream rate 42Mbps, uplink rate 5.76 Mbps HSPA+: Downstream rate 21Mbps, uplink rate 5.76 Mbps UMTS: 384Kbps
Transmit Power	<23dBm
Sensitivity	<-97dBm

WIFI Specification
Items	Contents
Standard and Band	IEEE802.11b/g/n
Bandwidth	IEEE802.11b/g: 54Mbps (Maximum) IEEE802.11n: 144Mbps (Maximum)
Security	Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power	15 ± 2dBm
Sensitivity	< -72dBm @ 54Mbps
Hardware System
Items	Contents
CPU	Industrial-grade CPU
Flash	16MB, 128MB(Optional)
DDR2	128MB
Interfaces
Items	Contents

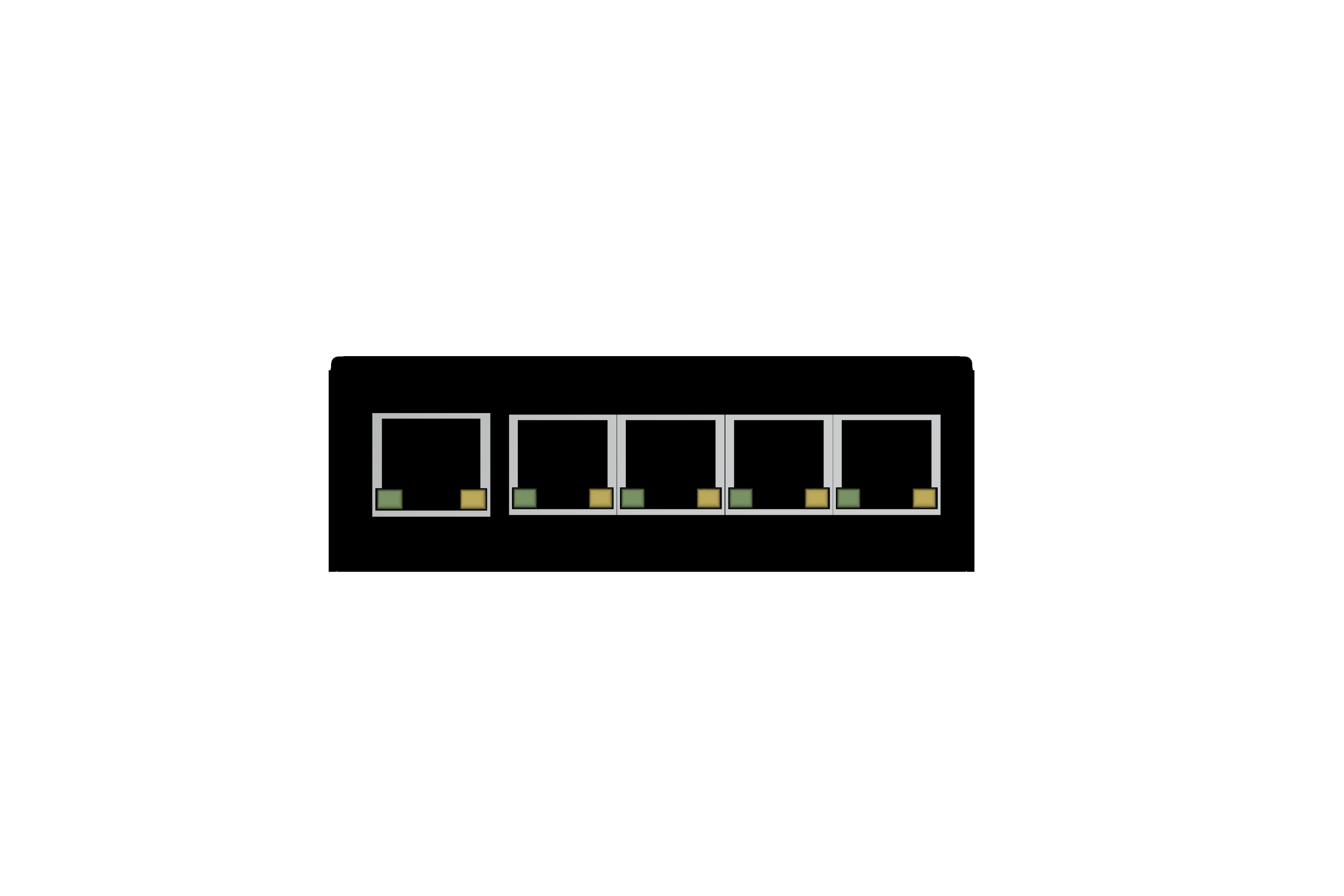

WAN Interface	1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
LAN Interface	4 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Serial	1 x RS232/485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (Optional) and MARK (Optional) Serial Port Rate: 2400~115200bits/s
LED Indicators	“PWR”, “Online”, “WIFI”
Antenna Interface	Cellular: 2*SMA female antenna interface, characteristic impedance: 50 Ω WIFI: Standard SMA male antenna interface, characteristic impedance: 50 Ω
SIM/UIM Slot	Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD, support dual-SIM card (Optional)
Power Interface	Standard 3.5mm terminal block interface, with built-in phase-reversal and over-voltage protection
Reset Button	Can reset router's configuration to default factory setting by this button

Power
Items	Contents
Input Voltage	DC 12V/1.5A
Accepted Range	DC 5~36V
Power Consumption
Work Mode	Consumption
Standby	95~135mA@12VDC
Communicating	165~220mA@12VDC
Sleep	<150uA@10.8VDC（<30uA@10.8VDC，close BLE module）
Physical Properties
Items	Contents
Casing	Metal casing, IP30 protection level, suitable for most industrial control applications.
Dimensions	127x89.5x30mm (excluding antennas and mountings)
Weight	345g
Others
Items	Contents
Operating Temperature	-35~+75℃
Storage Temperature	-40~+85℃
Relative Humidity	95% (non-condensing)

Specification

F3X36Q Industrial Router Specification V2.0.1
