Embedded ZigBee Module
|
|
F8913 Embedded ZigBee module is a kind of data terminal device that provides data transfer function by ZigBee network.The product support transparent data transmission function; low power consumption design, the lowest working current can less than 1uA; supply 5 I/O channels, compatible 3 analog inputs and 2 pulse input counters.
|

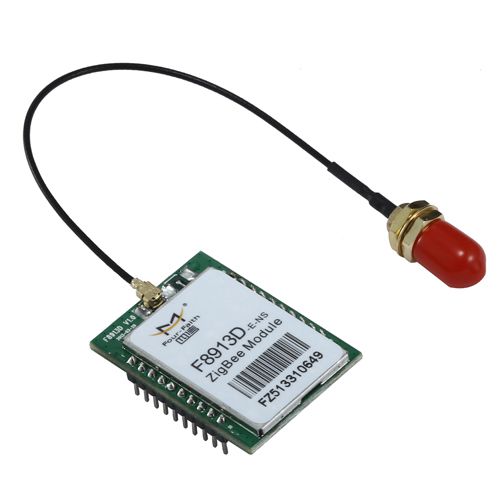

■ F8913D-N-NS (Without PA，DIP)
■ F8913D-E-NS(With PA，DIP)
■ F8913-N-MS(Without PA，SMT)
■ F8913-N-NS(Without PA，DIP)
■ F8913-E-NS(With PA，DIP)
■ F8913-E-MS (With PA，SMT)
|
|
 |
|
|
|
Environmental Adaptability |
| Designed for harsh and unattended environment。 |
|
 |
|
|
 |
|
Embedded ZigBee Module Small Size, Easy to Embed |
| Embedded ZigBee Module Small size, light weight, easy for embedded development. Support UART hole, SMT hole, DIP hole. |
|
|
|
|
Low Power Consumption, Long Continuous Working Time |
|
Supports multi-sleep and trigger modes, power consumption of deep sleep is less than 0.5uA.
|
|
 |
|
|
 |
|
2KM Communication Distance |
|
Point to point communication of Embedded ZigBee module is up to 2KM, support multi-level relay route, is helpful for creating large networking of long distance.
|
|
| |
|
Modules Can be Remotely Configured, Batch Management, Greatly Reducing the Intensity of Work
|
|
Remote, batch configuration parameters of communication module, upgrade, etc., more efficient for large project management.
|
|
 |
|
|
 |
|
Large Network Capacity |
|
Network capacity up to 65,000 nodes, hardened steel consumption monitoring, agricultural irrigation and other large projects application.
|
|
|
|
|
Compatible with a Variety of Industrial Applications Protocols
|
|
Support for smart home, digital oilfield industry and other rich application protocols.
|
|
 |
|
|
 |
|
Strong Project Adaptable, Flexible in Use
|
|
Integrated transparent transfer, API, AT mode, working mode of Embedded ZigBee module can be configured according to the project needs.
Support analog and digital data automatic acquisition and reported, no need for secondary development, shorten the project development cycle.
|
|
