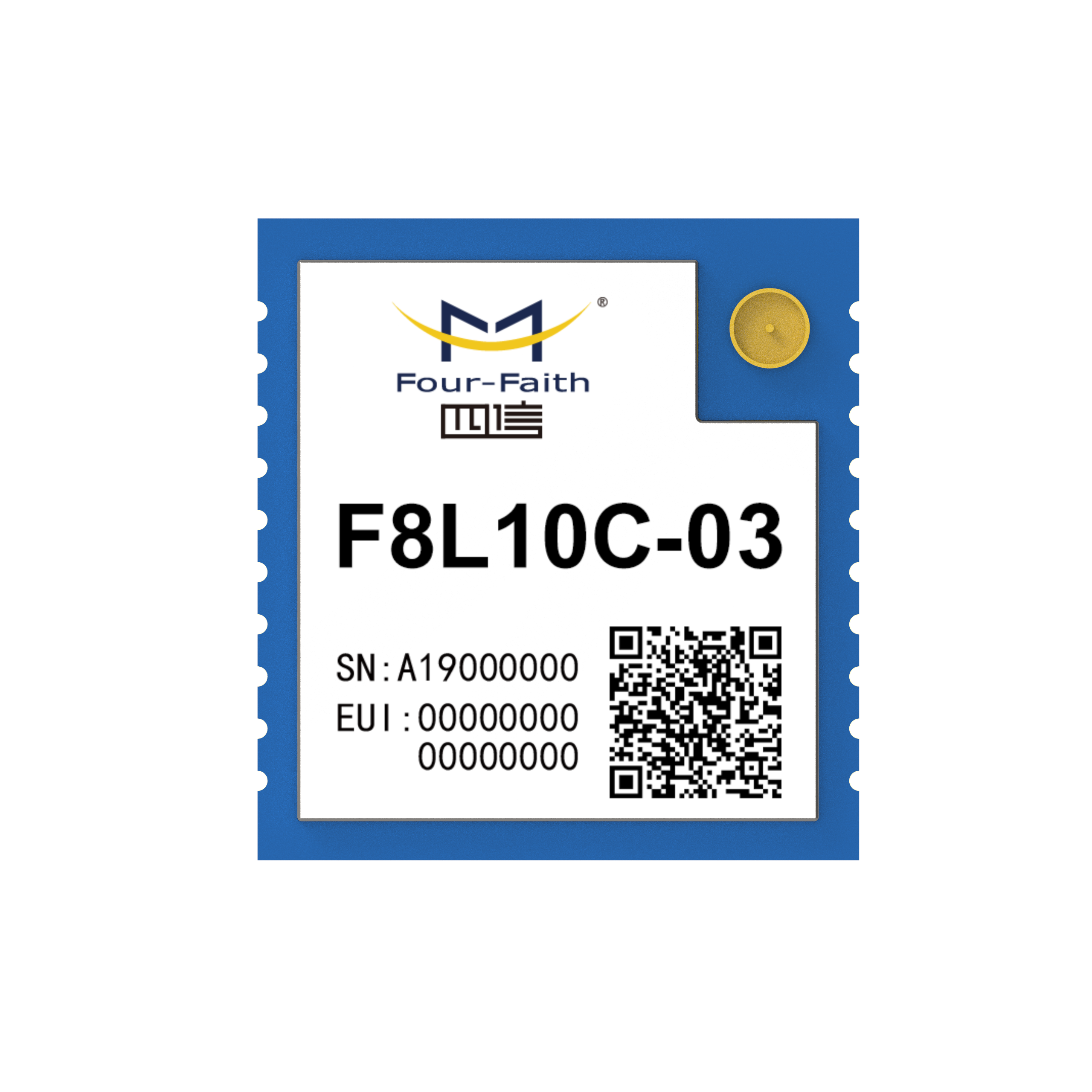

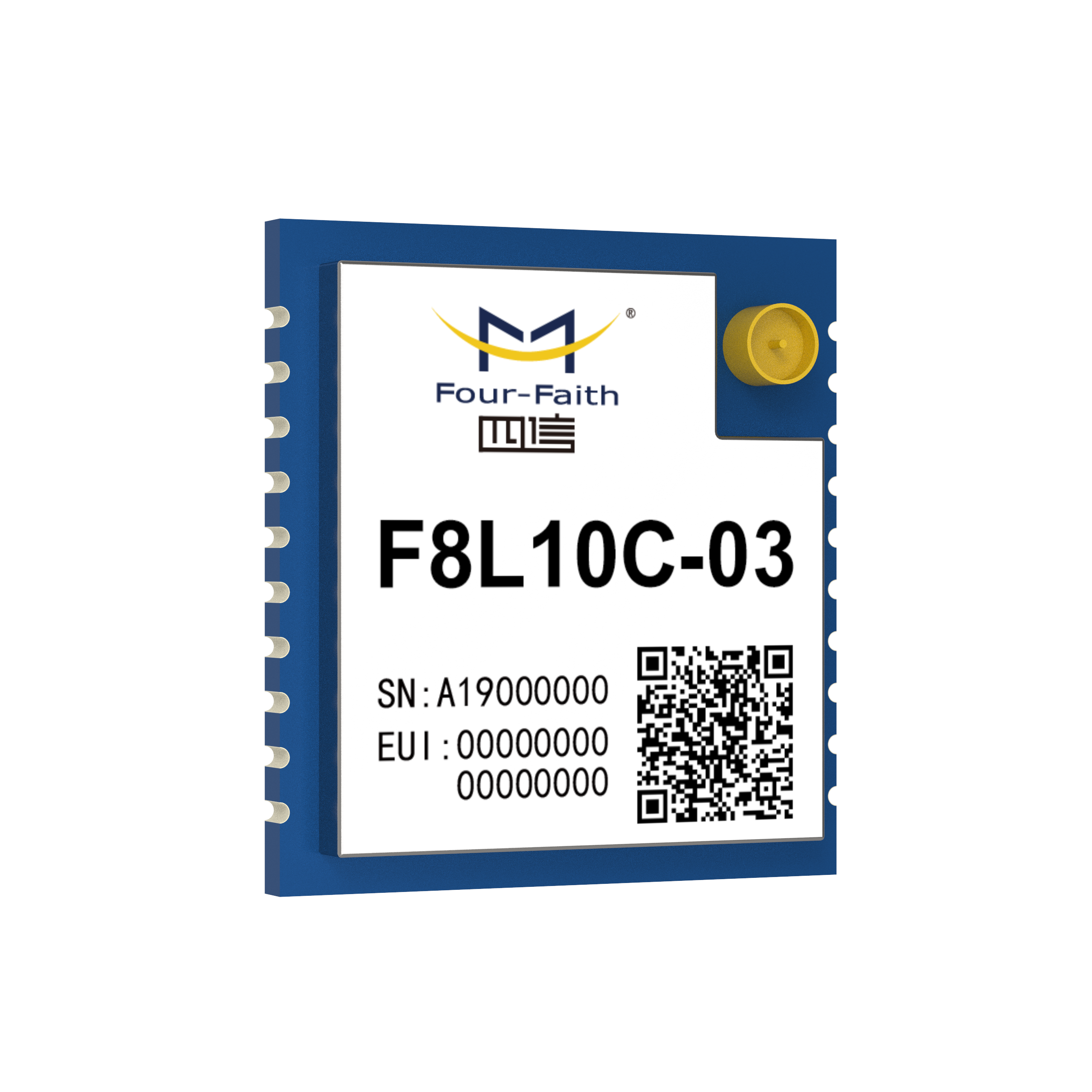

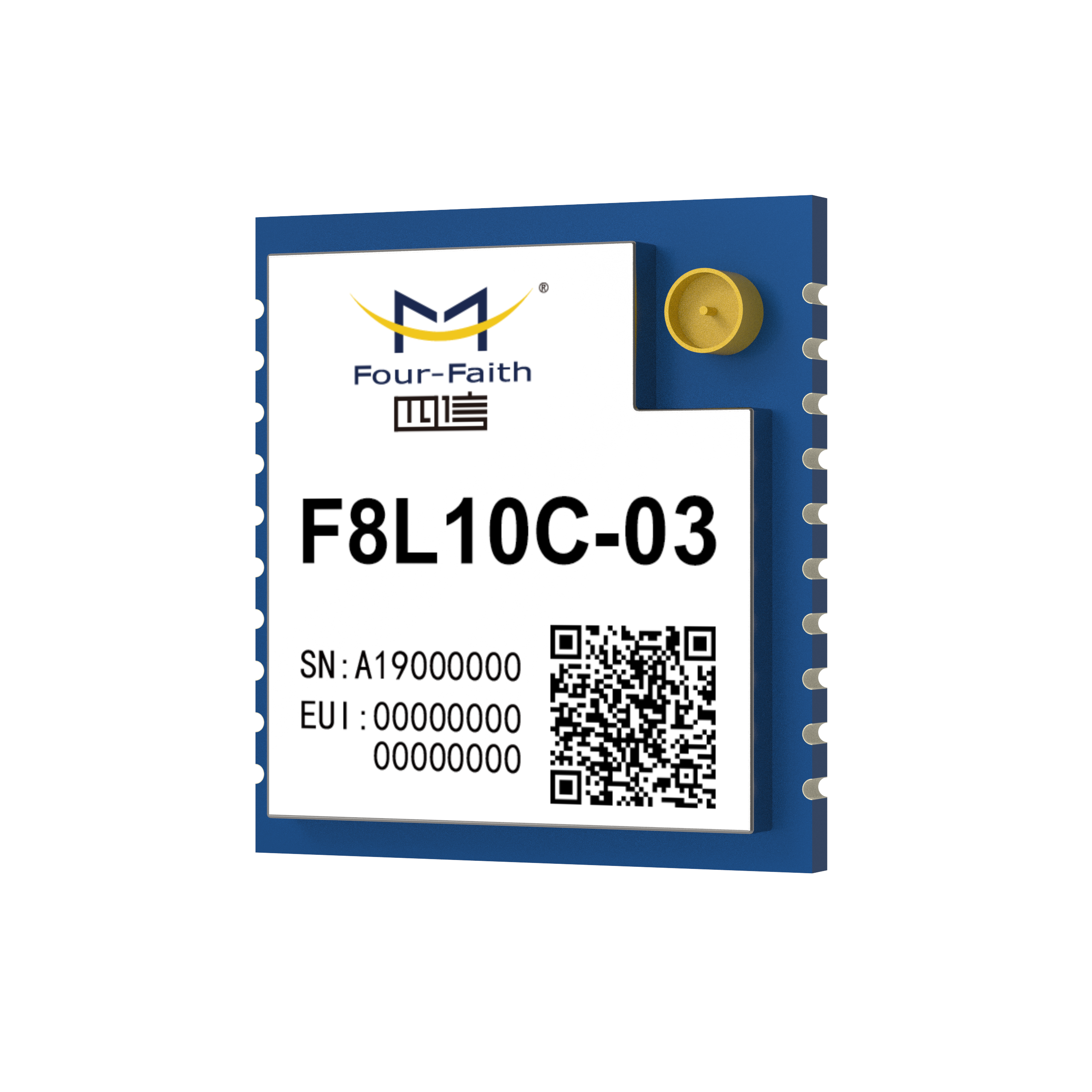

LoRa module F8L10C-03

LoRa Module F8L10C-03，F8L10C-03 LoRa module

• Industrial-grade chip; supports Four-Faith private protocol and LoRaWAN 1.0.4.
• RF chip covers 150–960MHz; module supports 410–510MHz and 863–928MHz bands.
• ESD protection meets national level 4 electrostatic standards.
• Built-in 32MHz industrial high-precision temperature-compensated crystal oscillator.
• Low-power design; sleep/wake modes; minimum current under 2μA.
• Max transmit power 22dBm, adjustable 5–22dBm; default 20dBm.
• High receive sensitivity:–137dBm @125KHz, SF12, CR1 .
• Power input: DC 1.8–3.6V.
• Supports serial software upgrade and remote OTA.
• Miniature 1.27mm × 10-pin stamped package.
• Supports multiple baud rates and RF data rates.
• Spreading factors SF5–SF12 supported.
• LoRa™ mode data rates 0.3–62.5kbps.
• RF output via IPEX connector or pin headers.
