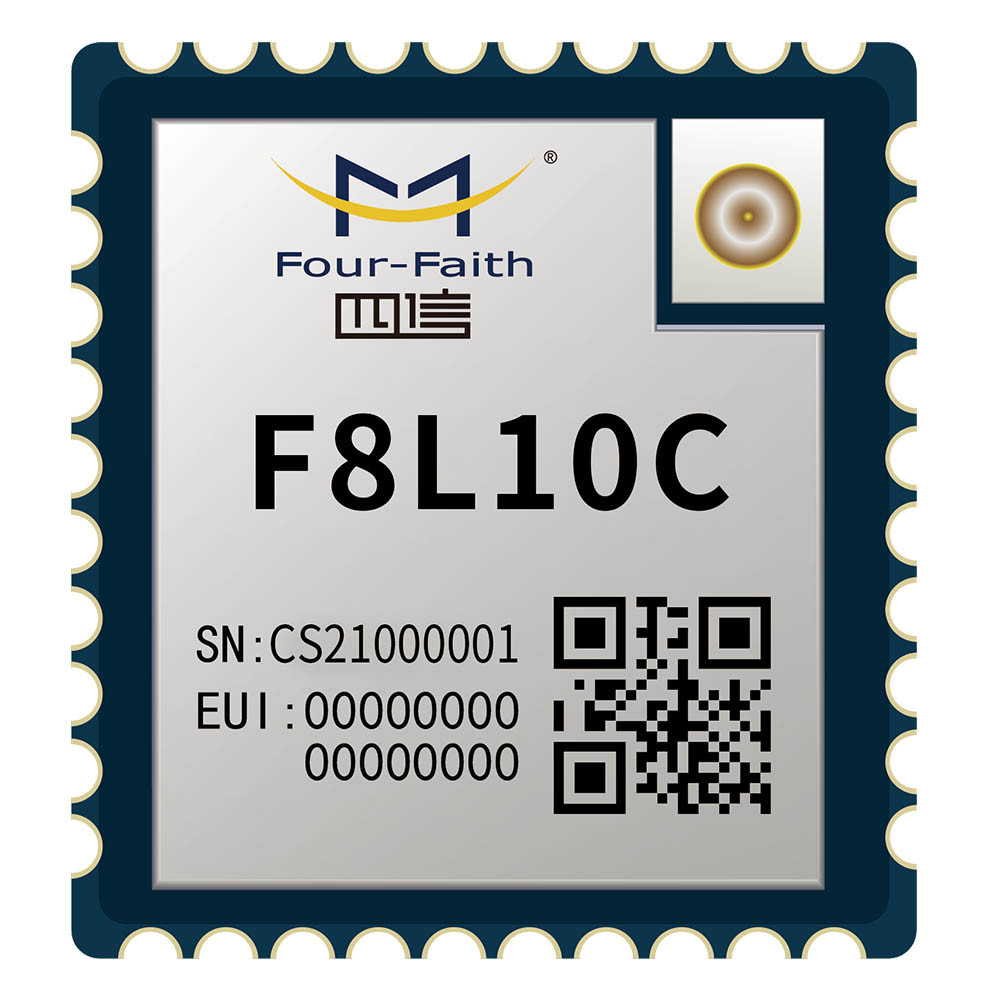

LoRaWAN Gateway Module F8L10C is an embedded wireless data transfer module based on LoRa SOC technology. LoRaWAN Gateway Module uses the LoRa network to provide users with a wireless data transfer function. The product uses ultra-low power LoRa SOC integrated chips that uses Semtech's advanced low power RF chip and 32-bit RISC MCU which adopts ARM Cortex M4. LoRaWAN Gateway Module support LoRaWAN, proprietary, CLAA, LinkWAN, and other protocols.
New "core" upgrade, excellent quality
Four-Faith LoRaWAN Gateway Module F8L10C is equipped with advanced LoRa SOC chips, providing low power consumption, high sensitivity, strong anti-interference, and small size.

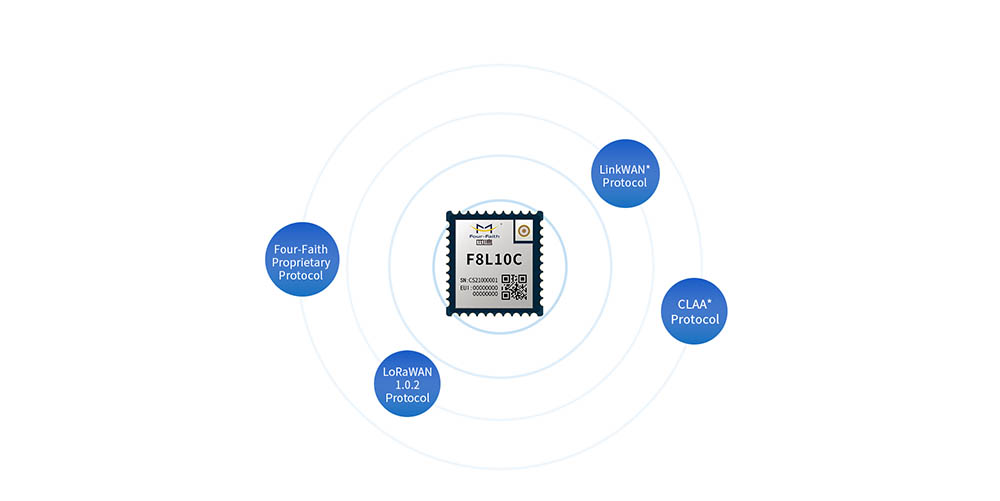

Multi - protocol Communication, High Compatibility
LoRaWAN Gateway Module F8L10C series products support all ISM frequency bands from 150MHz to 960MHz, and meet Four-Faith proprietary protocols, LoRaWAN1.0.2, LinkWAN*, and CLAA* so that F8L10C has high compatibility.

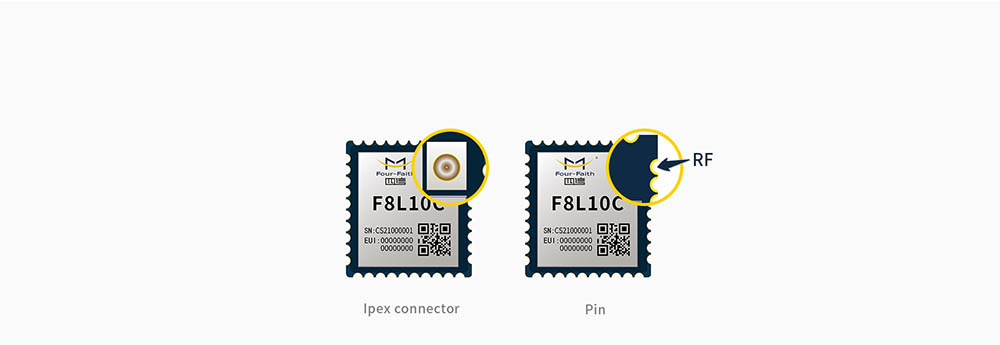

RF Design, Perfect Experience
LoRaWAN Gateway Module F8L10C series supports two RF signal output modes: Ipex connector and pin, which is convenient for customers to choose the hardware design.

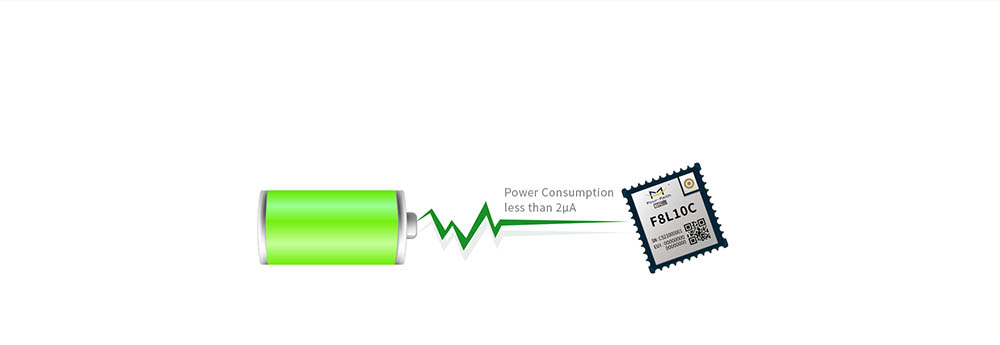

Ultra-low Power Consumption, Lower Cost
Low power consumption design, support deep sleep and air wake-up mode, less than 2μA to provide the longer battery life, reduce customer hardware, operation, and maintenance costs.
Power Consumption less than 2μA

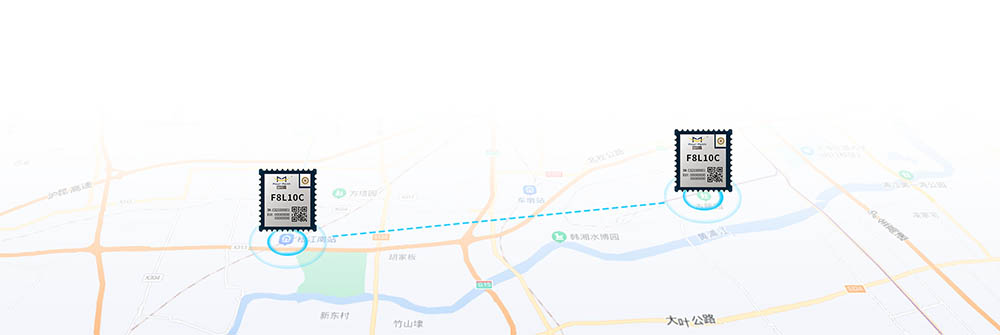

Long Distance Transmission, Industry Leading
Maximum transmitting power 22dBm, multistage power-adjustable (5~22dBm). Reception sensitivity up to -139dBm@125KHz, SF12, CR1 so that the communication transmission distance is greatly increased.

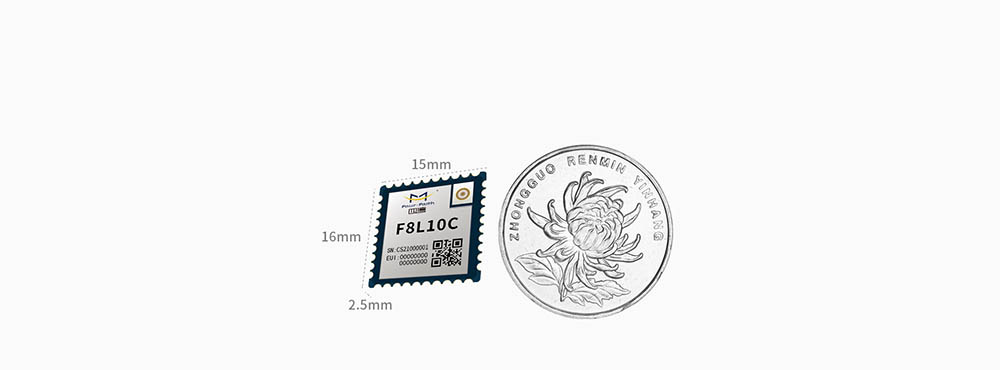

Small Size, Easy to Install
The dimension of the product is only 15*16*2.5mm, which saves more space for users and is convenient for embedded system application development.
Various Applications, Connections are Everywhere
Four-Faith LoRaWAN Gateway Module F8L10C can meet the demands of various Internet of Things products and can be widely used in intelligent fire protection, smart city, smart agriculture, smart home, smart logistics, smart wear, smart livestock, smart meter, and other Internet of things industries applications so that the connection is everywhere.
