LoRaWAN Temperature & Humidity Sensor FST100

LoRaWAN Temperature Sensor

● Certification: CE, FCC

● Humidity range: 0-100% RH

● Temperature range: -40-125 degrees Celsius

● Protection: ABS+PC shell, IP67 waterproof and dust-proof

● Applied scenarios: M2M fields of the IoT industry, cold chain transportation, etc.

Trial Sample

Features
Specifications
Download

Four-Faith LoRaWAN Temperature & Humidity Sensor FST100

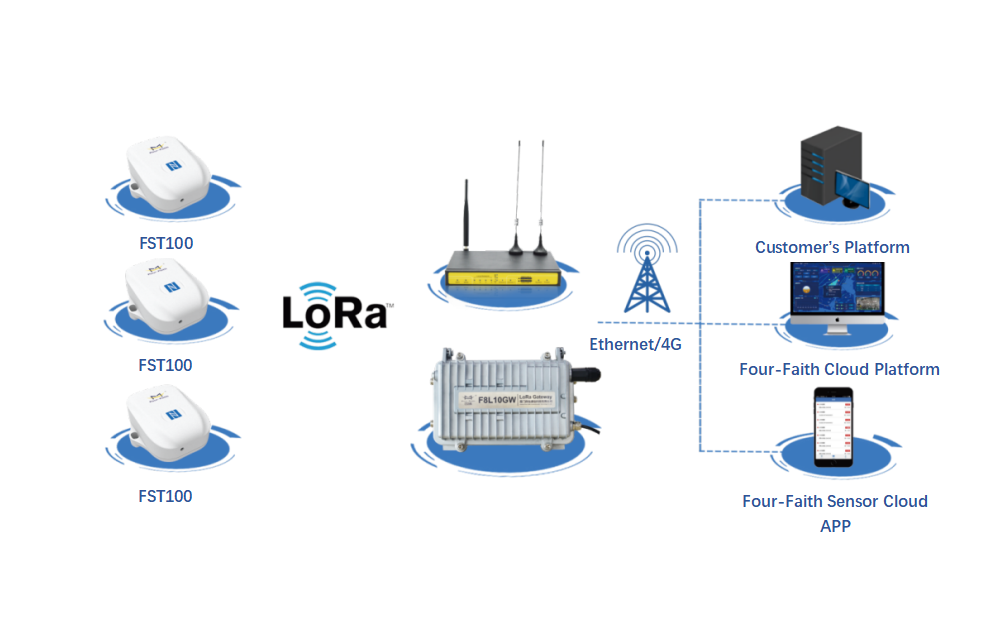

● Four-Faith’s FST100 sensor is a wireless data terminal based on LoRa technology, and it plays the role of data transmission through the LoRa network in IoT-applied solutions and other smart interactive scenarios.

● The FST100 temperature and humidity sensor adopts self-developed LoRa modules, and with IP67 waterproof and dustproof protection, it is able to keep the stable operation even in harsh industrial environments.

● The FST100 temperature and humidity sensor has been widely used in fields like cold chain transportation, data labs, and other places that require consistent temperature and humidity.

Product Specification

Characteristics
Items	Contents
Sensor Type	Digital Sensor
Sensor temperature Measuring Range	-40℃~125℃
Sensor Humidity Measuring Range	0 ~ 100% RH
Temperature Measurement Accuracy	±0.2℃ (Typical 0-65℃, minimum or maximum temperature accuracy range does not exceed ±0.8℃)
Humidity Measurement Accuracy	±1.8% RH (Typical 30-70RH, minimum or maximum humidity accuracy does not exceed ±7%RH)
Operating Temperature	-20℃~60℃
Frequency	Low frequency:410-510MHz High frequency:863-928MHz
Protocol	Private protocol, LoRaWAN^® protocol
Indoor Communication Distance	Penetrates 6 floors
Outdoor Communication Distance	4.2 Km
Operating Voltage	Built-in 3.6V/8200mAh lithium battery (Disposable)
Transmitting Current	≤86.2mA, duration less than 0.53second, (SF=9@20dBm)
Receiving Current	≤11.3mA, (SF=9@20dBm)
Sleep Mode Current	≤15.3uA, (SF=9@20dBm)
Note: The smaller the SF (the higher the rate), the shorter the transmission distance, the shorter the launch time, and the less the function

Battery Life
Item	Voltage/Current	Data Rate	Collection Interval (Time)
Deep Sleep	<15.3uA	Level 3 (Further transmission)	5 minutes: about 1400 days (4 years) 10 minutes: about 3000 days (8 years)
Receiving Data	<11.3mA
Transmitting Data	<86.2mA
Deep Sleep	<15.2uA	Level 4 (Closer transmission)	5 minutes: about 1600 days (4.5 years) 10 minutes: about 3200 days (9 years)
Receiving Data	<11.3mA
Transmitting Data	<86.2mA
Note: The battery working time is the theoretical day. The theoretical day is also affected by wireless signals and working temperature and humidity. The battery working time may be slightly shorter or longer.
Hardware
Item	Content
CPU	Industrial grade 32-bit communication processor
Flash	128KB
SRAM	16KB
Other
Item	Content
Shell	PC+ABS material, anti-exposure, anti UV, anti-aging, impact resistance, protection grade IP67

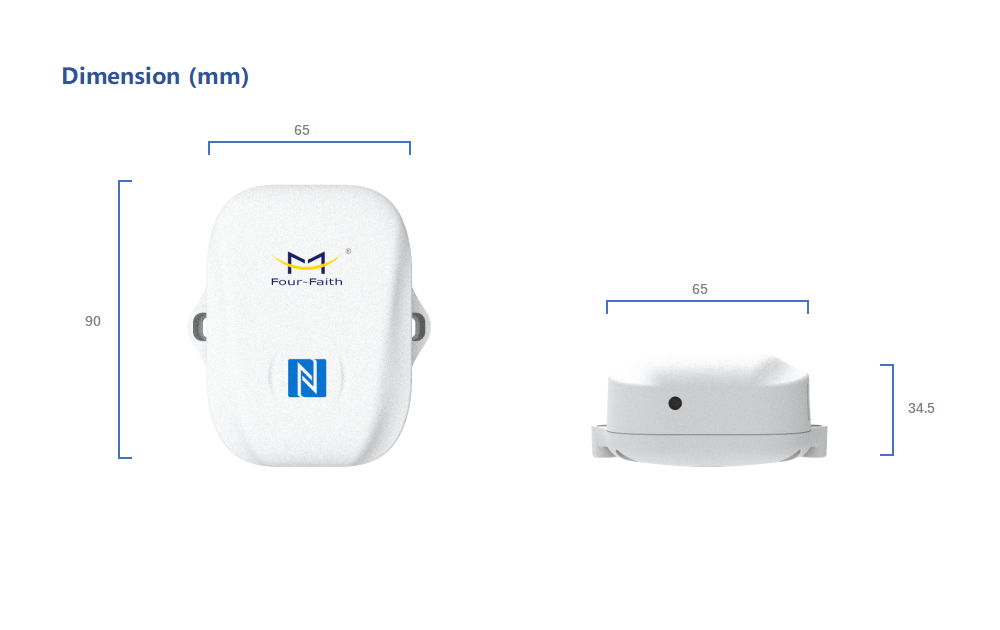

Dimension	90x65x34.5mm (Excluding antenna and mounting parts)
Installation	Wall mount
Flame Resistance	UL94V-0
Weight	365g
Operating Temperature	-20~+60℃（-4~+140℉）
Storage Temperature	-20~+60℃（-4~+140℉）
Humidity	95% (No condensation)

Order Information

Products	Frequency	Description
FST100-00L	410-510 MHz	The sensor terminal supports only disposable lithium sub-battery power consumption and built-in temperature and humidity sensors，Support private protocol and LoRaWAN protocol, support LoRaWAN frequency band CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923, etc
FST100-00H	863-928 MHz
