Sim Card WiFi Router F3X26Q

Sim Card WiFi Router

Certification: CE, FCC
Outer shell: metal, IP30 protection level
System: watchdog design, complete mechanisms, stable operation
Standard ports: RS232, RS485, RS422, Ethernet LAN&WAN, Wi-Fi
CPU: industrial-grade 32-bit processor & wireless module
Applied scenarios: M2M fields of the IoT industry, smart factories, etc.
OS Linux
VPN GRE IPsec

Trial Sample

Features
Specifications
Download

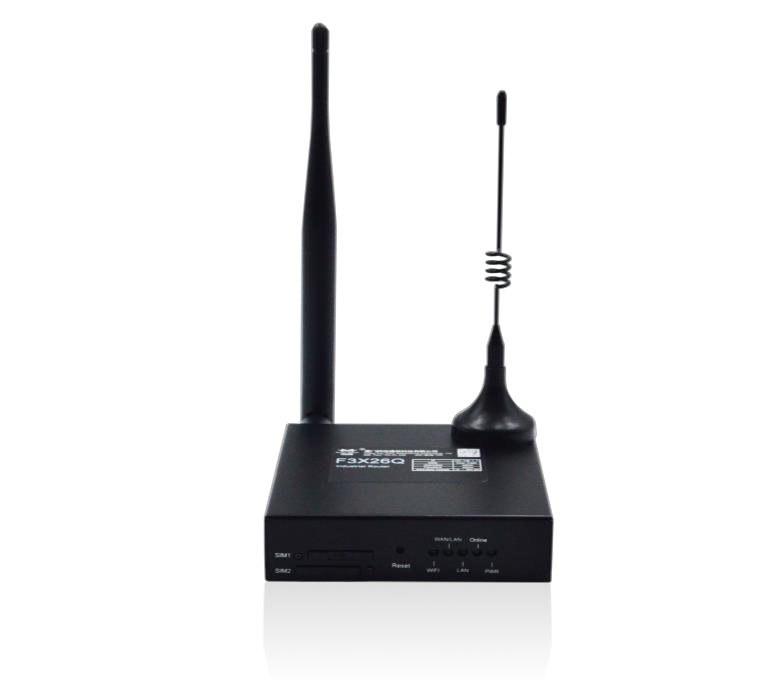

Four-Faith SIM Card Wifi Router F3X26Q

● Four-Faith's F3X26Q is an IoT wireless communication router. It plays the role of transmitting long-distance wireless data through public networks in real IoT-applied solutions and other smart interactive scenarios.

● The F3X26Q router is equipped with quality components including an industrial-grade 32-bit processor and wireless module, with the watchdog system, which significantly improves its durability and makes it capable of keeping stable operation even in harsh industrial environments.

● With standard ports including RS232 and RS485, the F3X26Q sim card wifi router has the capacity to connect multiple devices simultaneously for wireless data transmission.

● The F3X26Q sim card wifi router has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, and environmental protection, etc.

Sim Card WiFi Router

Cellular Specification

Item	Content
F3X26Q-FL FDD-LTE WIFI Industrial Router
Standard and Band	Support FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28 Support TDD-LTE B38/B39/B40/B41 Support TD-SCDMA: B34, B39 Support HSPA+/UMTS B1/B2/B5/B8 Support EV-DO: BC0 CDMA 1x: BC0 Support EDGE/GPRS/GSM 850/900/1800/1900MHz
Bandwidth	FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps DC-HSPA+: Downstream rate 42Mpbs, uplink rate 5.76 Mbps HSPA+: Downstream rate 21Mpbs, uplink rate 5.76 Mbps UMTS: 384Kbps
Transmit Power	<23dBm
Sensitivity	<-97dBm

F3X26Q-L LTE WIFI Industrial Router
Standard and Band	Support all band: FDD-LTE, TD-LTE, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
Bandwidth	FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps DC-HSPA+: Downstream rate 42Mpbs, uplink rate 5.76 Mbps TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps EVDO Rev. A: Downstream rate 3.1Mbps, uplink rate 1.8Mbps
Transmit Power	<23dBm
Sensitivity	<-97dBm

WIFI Specification

Item	Content
Standard and Band	IEEE802.11b/g/n
Bandwidth	IEEE802.11b/g: 54Mbps (Maximum) IEEE802.11n: 144Mbps (Maximum)
Security	Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power	15±2dBm
Sensitivity	<-72dBm@54Mbps

Hardware System

Item	Content
CPU	Industrial-grade CPU
FLASH	16MB(128MB, special version available)
DDR2	128MB

Interface

Item	Content
WAN Interface	1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
LAN Interface	1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Serial	1 x RS232/485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) Serial Port Rate: 2400~115200bits/s
LED Indicators	“PWR”, “Online”, “LAN”, “WAN/LAN”, “WIFI”
Antenna Interface	Cellular: Standard SMA female antenna interface, characteristic impedance: 50 Ω WIFI: Standard SMA male antenna interface, characteristic impedance: 50 Ω
SIM/UIM Slot	Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD, support dual-SIM card option
Power Interface	Standard 3.5mm terminal block interface, with built-in phase-reversal and over-voltage protection
Reset Button	Can reset router’s configuration to default factory setting by this button

Power

Item	Content
Input Voltage	DC 12V/1.5A
Accepted Range	DC 5~36V

Power Consumption

Work Mode	Consumption
Standby	95~135mA@12VDC
Communicating	165~220mA@12VDC

Physical Properties

Content


Casing	Metal casing, IP30 protection level, suitable for most industrial control applications.
Dimensions	93x89x24mm (excluding antennas and mountings)
Weight	250g

Others

Item	Content
Operating Temperature	-35~+75℃
Storage Temperature	-40~+85℃
Relative Humidity	95% (non-condensing)

Ordering Information

Model	Description	WAN	LAN	Cellular Antenna	WIFI Antenna	SIM/UIM
F3X26Q-FL	FDD/TDD-LTE WIFI Industrial Router	1	1	1	1	1
F3X26Q-L	LTE WIFI Industrial Router	1	1	1	1	1
F3X26Q-FL-SIM2	FDD/TDD-LTE WIFI Industrial Router	1	1	1	1	2
F3X26Q-L-SIM2	LTE WIFI Industrial Router	1	1	1	1	2
