Cellular Wireless Router F-R200

Cellular Wireless Router

● Certification: CE, FCC

● Outer shell: metal, IP30 protection level

● System: watchdog design, complete mechanisms, stable operation

● Abundant ports: RS232, RS485, RS422, Ethernet LAN&WAN, Wi-Fi

● CPU: industrial-grade 32-bit processor & wireless module

● Applied scenarios: M2M fields of the IoT industry, smart factories, etc.

Trial Sample

Features
Specifications
Download

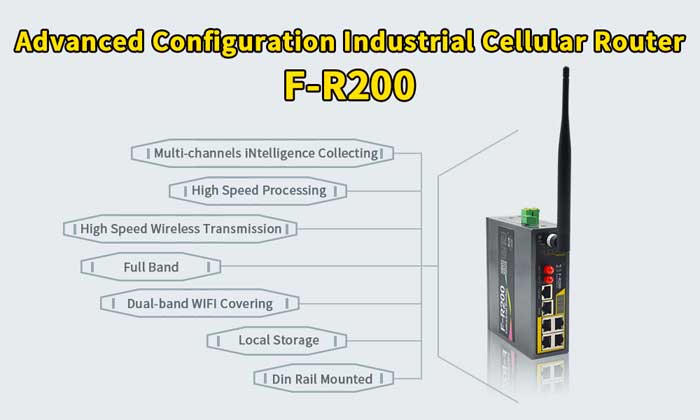

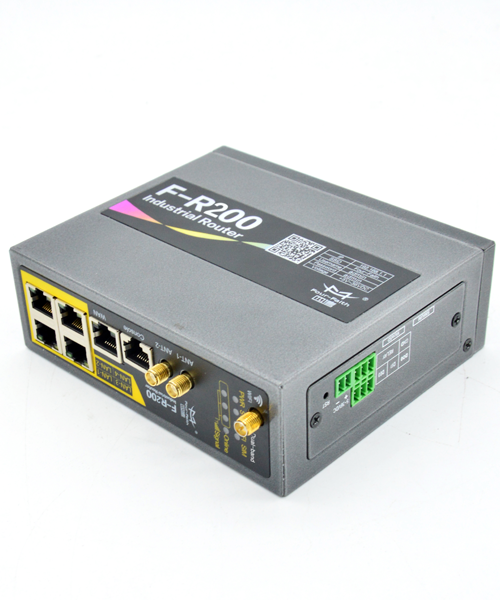

Four-Faith 4G Cellular Router F-R200

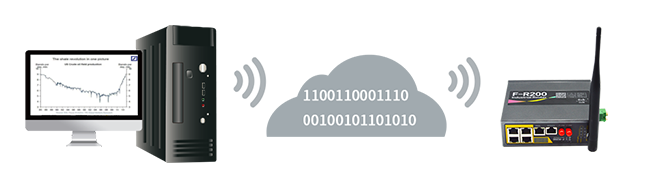

● Four-Faith's F-R200 is an IoT wireless communication router that plays the role of wireless data transmission through public networks in real IoT-applied solutions and other smart interactive scenarios.

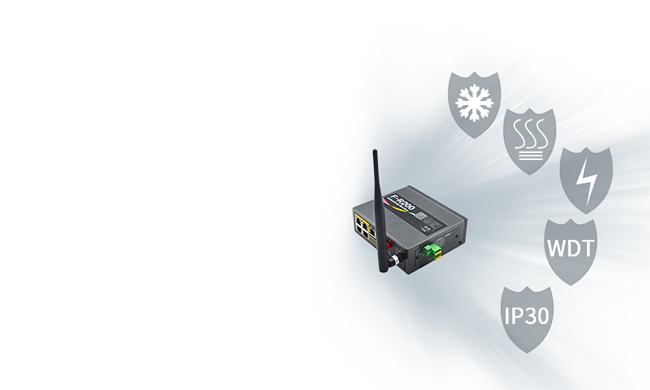

● Equipped with an industrial-grade 32-bit processor and wireless modules, and with the watchdog system, the F-R200 cellular router is able to keep its stable operation even in harsh industrial environments.

● With abundant ports including RS232 and RS485, the F-R200 cellular router has the capacity to connect multiple devices simultaneously for wireless data transmission.

● The F-R200 cellular router has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, and environmental protection, etc.

Cellular Wireless Router

CELLULAR　WAN	• Supported Frequency Bands -- LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28 -- WCDMA: 2100(B1), 1900(B2), 850(B5) -- EV-DO/CDMA: 800(BC0) -- GSM/GPRS/EDGE: 850/900/1800/1900 • Automatic SIM based network operator switching

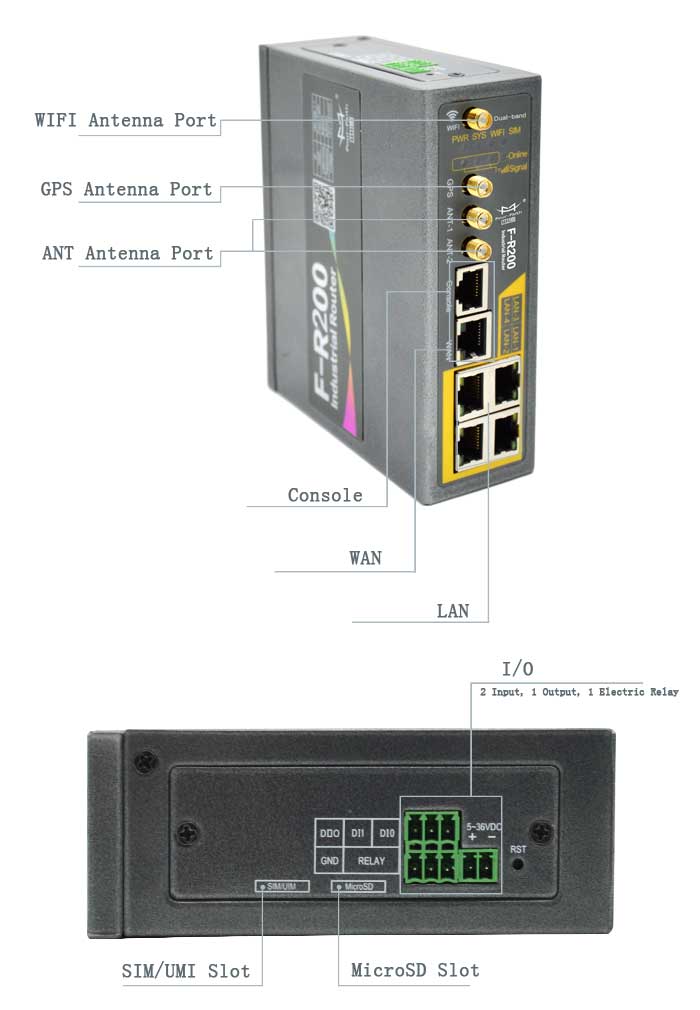

HOST　INTERFACES	• 10/100/1000 Base-T RJ45 Ethernet port • RS-232 or RS-485 Serial Console Port • 3 SMA antenna connectors (WIFI and Double-cellular) • Active GPS antenna support (option) • (6) pin 3.5mm terminal block

INPUT/OUTPUT	• (6) pin 3.5mm terminal block. • (2) DI, (1) DO, (1) Relay. • Input ON Voltage: 5 to 30 VDC. • Input OFF Voltage: 0 to 3 VDC. • Output < 50mA @ 30VDC. • Relay:1A 250VAC/30VDC

LAN	• DNS, DNS Proxy • DHCP Server • IP Passthrough (option) • VLAN • Host Interface Watchdog • PPPoE

SERIAL	• TCP/UDP PAD Mode • Modbus (ASCII, DTU, Variable) • PPP • Reverse Telnet

EVENTS ENGINE (Option)	• Custom event triggers and reports. • Configurable interface, no programming. • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature. • Report Types: TCP, UDP, SMS, SNMP Trap, HTTP, JSON. • Event Actions: Drive Relay Output.

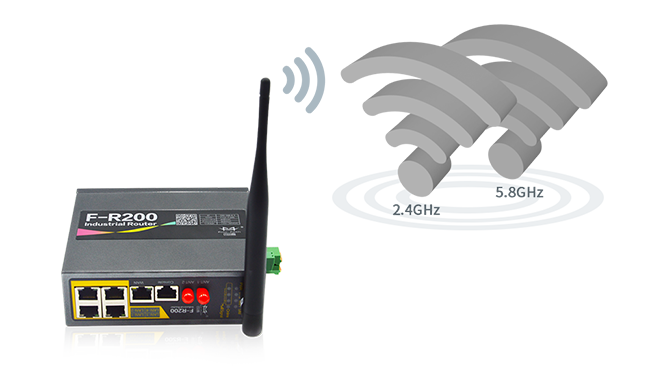

WIFI	• IEEE802.11 ac, compatible IEEE 802.11 b/g/n. • AP and client mode. • Adjustable output power (Max: 26dBm) • Access point for up to 30 clients • Simultaneous access point/client mode • WEP, WPA-PSK, WPA2-PSK etc. Security

NETWORK AND ROUTING	• Network Address Translation (NAT) • Port Forwarding • Host Port Routing • VRRP • Reliable Static Route • Dynamic DNS

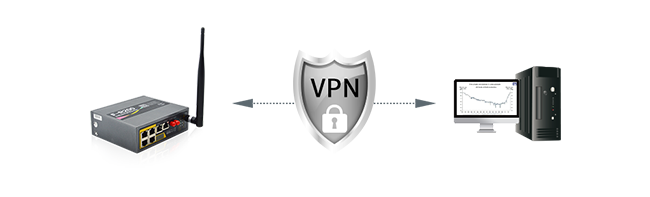

VPN	• IPSec, GRE, and OPENVPN Client • Up to 10 concurrent tunnels • Split Tunnel • Dead Peer Detection (DPD) • Multiple Subnets • VPN Failover

SECURITY	• Remote Authentication • DMZ • Inbound and Outbound Port filtering • Inbound and Outbound Trusted IP • MAC Address Filtering.

GPS (Option)	• Antenna Interface: SMA Female, 50 ohms impedance • Tracking Sensitivity: better than -144 dBm • Horizontal position accuracy: 2.5 m • Time-To-First-Fix: 29 s • Protocol: NMEA-0183 V2.3

OPERATION ENVIRONMENT	• Operating Temperature: -35°C to +75°C / -31°F to +167°F • Storage Temperature: -40°C to 85°C / -40°F to 185°F • Humidity: 90% RH @ 60°C
