Fiber Switch F-SW1010

Outer shell: metal, IP30 waterproof and dust-proof protection

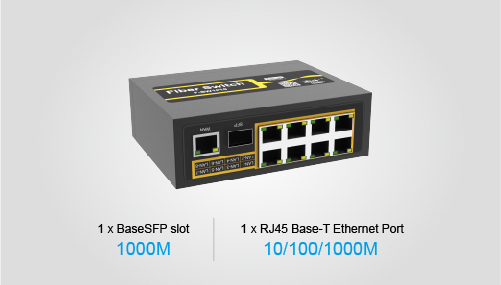

Standard ports: 10 ports (including 8x10/100M Ethernet responsive ports and 1x1000M fiber optic port)
Applied scenarios: M2M fields of the IoT industry, smart grids, industrial automation, etc.
Other specifications: F-SW1010 has the capacity to connect multiple devices simultaneously for high-speed data transmission.

Trial Sample

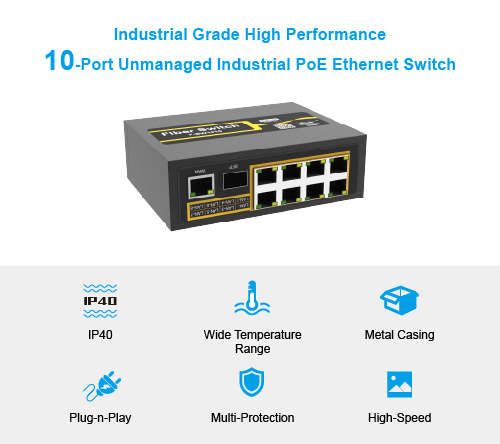

Fiber Switch F-SW1010 Industrial Grade High Performance

10-Port Unmanaged Industrial PoE Ethernet Switch SPECIFICATION

Transmission Distance
Ethernet Cable		100m（Standard CAT5/CAT5e），250m（CAT6）
Fiber Support single/dual mode fiber, dual：550M；single：20/40/60/80/100KM
Characters
Application Level		2
Processing Type		Store-and-forward
Backplane Bandwidth		3.6Gbps
Packet Forwarding Rate		2.68Mpps
Mac Table Size		2K
Power
Input Power DC9~36V, 40~60V (PoE Version)
Consumption		<5W, PoE Version<120W
Interface 5.08mmTerminal Block Interface，with Overload Current and Reverse Polarity Protection
Operating Environment
Operating Temperature		-40℃~75℃
Relative Humidity 0~90% (non-condensing)
Others
IP Rating IP40
Weight		520g / 610g (PoE Version)
Dimension		134.8mmX115.7X45mm
Warranty		5 Years
Standards
EMS		EN61000-4-2 Level 3 EN61000-4-3 Level 3 EN61000-4-4 Level 3 EN61000-4-5 Level 3 EN61000-4-6 Level 3 EN61000-4-8 Level 4
Shock		IEC60068-2-27
Freefall		IEC60068-2-32
Vibration IEC60068-2-6 DIMENSIONS (mm)

Fiber Switch F-SW1010
