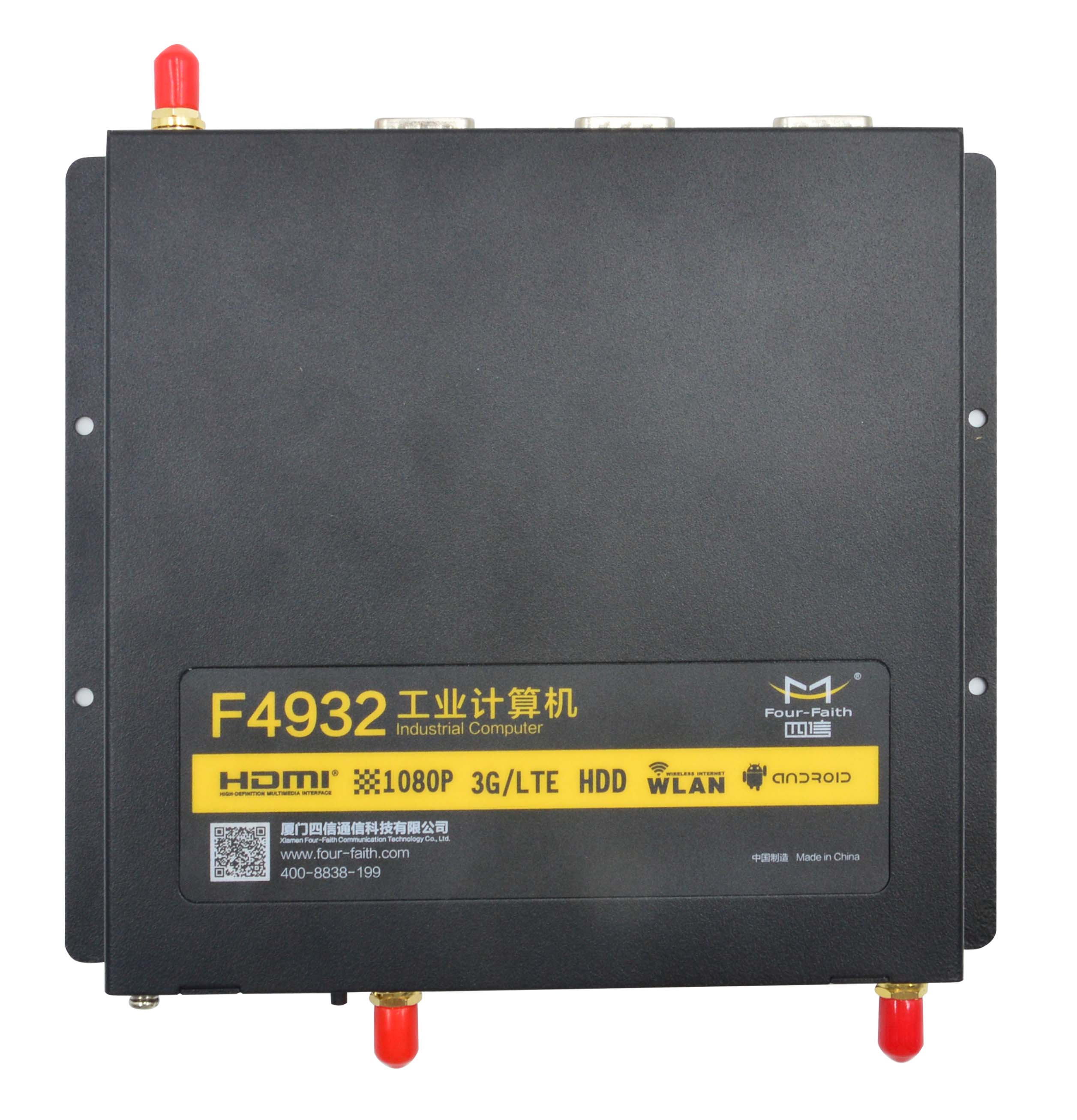

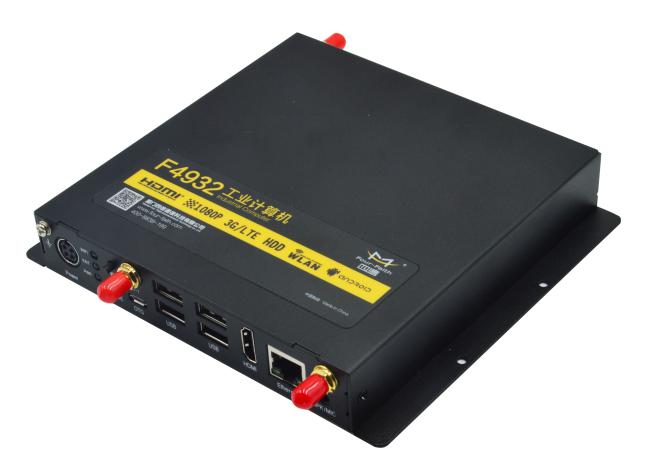

Android Industrial Computer F4932-R1Q is a low-power android industrial computer independently developed by Four-Faith. It combines wireless cellular network and routing technology with android industrial computer technology. The system uses Quad-core ARM Cortex-A17 RK3288 processor with a main frequency of 1.8GHz. Provide high-speed computing support for client task programs. Support OpenGLES2.0 and OpenVG™1.1 hardware accelerator, full HD 1080P video codec engine, provide smooth and powerful video experience for multimedia playback. F4932-R1Q contains 4 USB, 2 RS232, 1 RS232/RS485, HDMI, network, audio and other forms of interfaces, and can be connected with scanners, printers, cameras, keyboards, mice, infrared screens, LCD screens and other equipment , No longer bothered by the lack of interfaces.
|
Industrial Design
● Use high-performance components
● Use Rockchip RK3288 processor
● Using professional power supply design
● Wide power input (DC 9～24V)
● Wide working temperature design (-20℃～60℃)
● Adopt 4-core S-terminal power interface, fasten and not fall off
● The whole machine has no fan design
● TF card and SIM card adopt anti-theft structure design
● Built-in Android 5.1 (standard) operating system
Reliable
● WDT watchdog design to ensure system stability
● Adopt a complete anti-drop mechanism
● Ethernet interface built-in 1.5KV electromagnetic isolation protection
● RS232/RS485 interface built-in 15KV ESD protection
● Built-in 15KV ESD protection for SIM/UIM card interface
● Antenna interface lightning protection (optional)
Standard
● Power on to enter working state
● Android Industrial Computer support 10/100/1000Mbps Ethernet
● Provide 4 standard USB2.0 interfaces
● Provide multiple RS232 or RS485 DB9 interfaces
● Provide audio input and output interface
Powerful
● F4932-R1Q android industrial computer support 1080P video codec and 3D acceleration
● Local storage supports TF card (optional)
● Open Android environment, you can develop and install applications by yourself
● Industrial Computer support HDMI, LVDS (optional) external touch screen and other display devices
● Support 802.11 b/g/n WIFI network, and provide multiple encryption methods
● Provide rich external interfaces to meet customer application needs
● Android industrial computer support 3G/4G dial-up Internet
● Android industrial computer support APN/VPDN private network dial-up
● Industrial Computer supports intelligent online retention, disconnected re-connection, and abnormal recovery functions
● Provide PWR, SYS, ONLINE, WIFI and other indicators, which is more convenient to use and maintain
● Support NTP, built-in RTC, support timing restart, timing switch machine function
● Support multi LAN/WAN connection methods, including static IP, DHCP, 3G/4G and other methods
● Industrial Computer support 3G/4G network and wired LAN/WAN dual link intelligent switching backup function (optional)
