LoRa/LoRaWAN Asset Monitoring Terminal F-LT300

LoRa Asset Monitoring Terminal LoRaWAN Asset Monitoring Terminal

● Battery life: 5-6 years

● Protection level: IP65

● Function: wireless alarm, security and protection monitor

● Applied scenarios: smart factories, smart warehouse

Trial Sample

Features
Specifications
Download

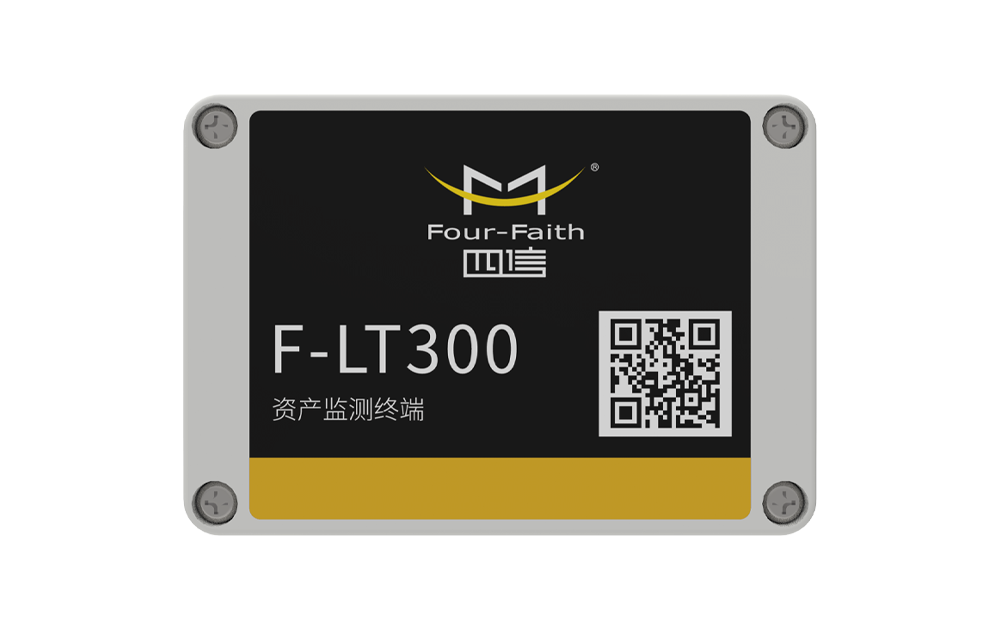

Four-Faith LoRaWAN Security Monitoring Terminal F-LT300

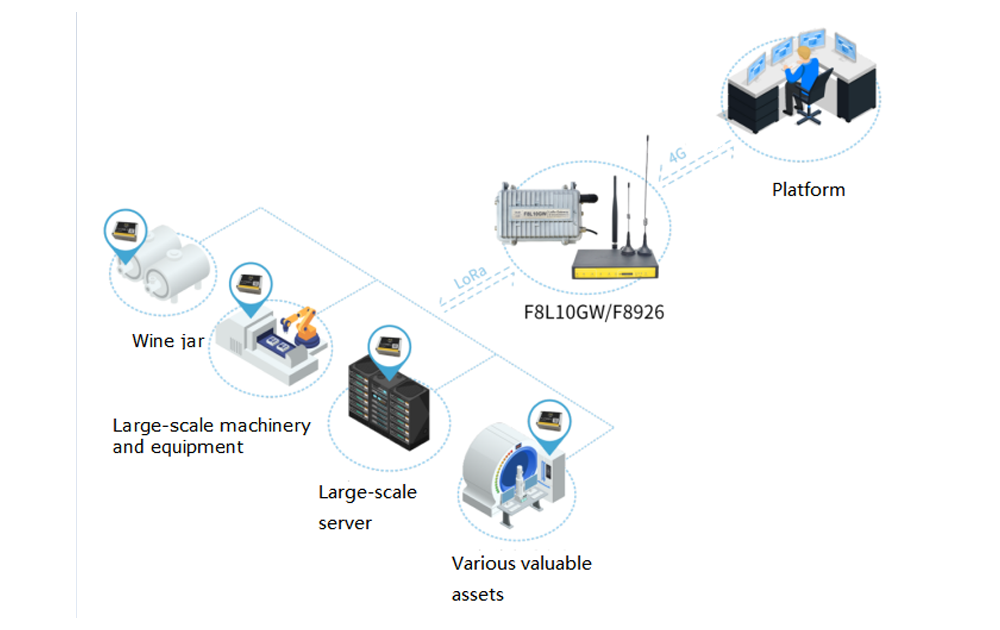

● Four-Faith’s F-LT300 is an asset monitoring terminal that supports LoRaWAN standard. It plays the role of wireless alarm through LoRa technology and has been applied in security and protection systems.

● The F-LT300 has been widely used in places that require high security measures like smart factories, and smart warehouses.

Product Specification

LoRa Parameters
Items	Contents
Band	470-510 MHz, 850-935 MHz
LoRa Protocol	LoRa, LoRaWAN®
Transmit Power	13 dBm (MAX 20dBm)
Floor Penetration Ability	2-3 floor (13 dBm)
Sensitivity	-142dBm@SF12

Power Consumption
Items	Contents
Deep Sleep Current	< 22uA
Send Data: Current	Heartbeat: 45mA @13dBm Alarm: 80mA @13dBm
Receive Data Current	5.6mA
Over-discharge Protection Voltage	≤3.0V
Voltage Undervoltage Prompt	≤3.3V

Physical Properties
Items	Contents
Dimensions	83 x 58 x 34mm (Excluding antenna and mounting parts)
Battery Working Life	More than 5 years (2.6Ah data twice a day)

Others
Items	Contents
Operating Temperature	-10~+55ºC (14~+131ºF)
Relative Humidity	10% - 95% (non-condensing)

Specification

F-LT300 LoRa Asset Monitoring Terminal Specification V2.0.0
