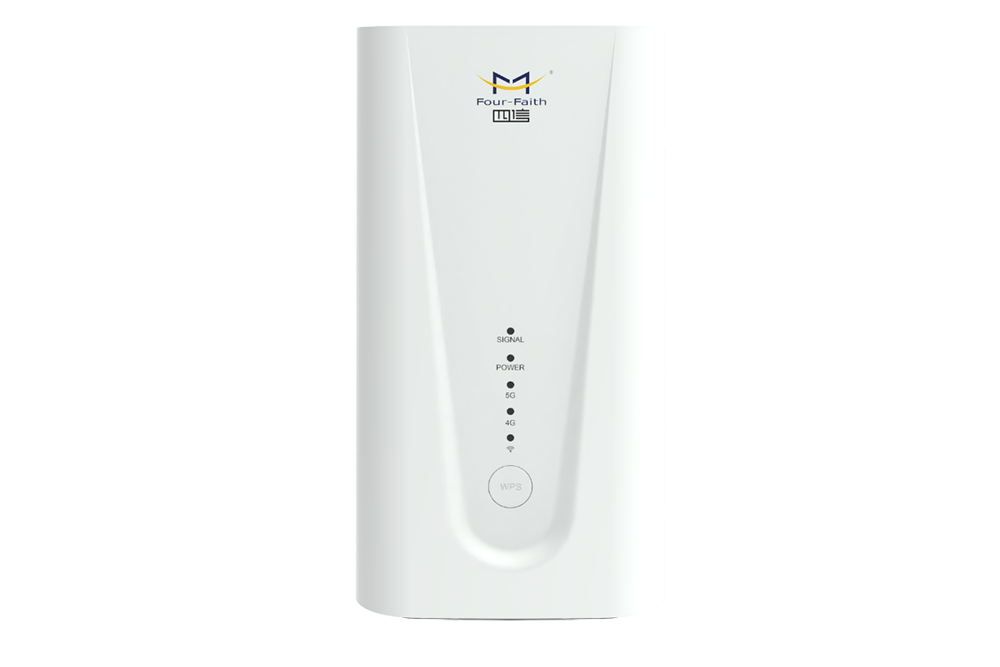

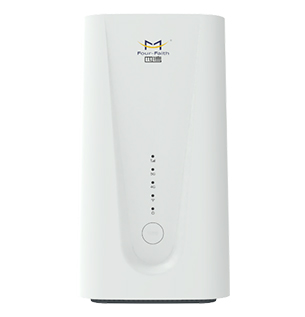

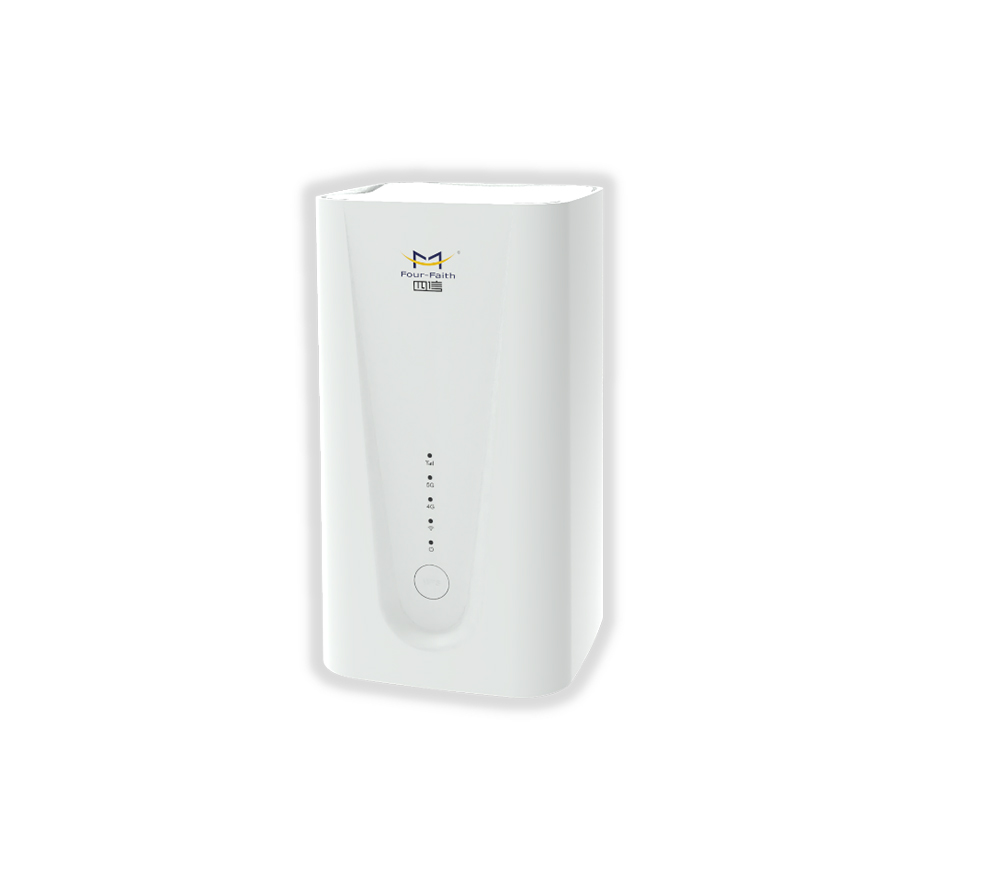

WiFi CPE F-NR300 V2

● Supports 1x1G LAN port
● WiFi CPE Router supports 1x1G LAN/ WAN port
● Supports 2.4G+5G dual-band WIFI-AP

Trial Sample

Features
Specifications
Download

WiFi CPE F-NR300 V2

WiFi CPE is 5G indoor CPE, supports NR (SA&NSA), TDD-LTE, FDD-LTE, converts cellular network data into WIFI and wired network port data, supports 1x1G LAN port, 1x1G LAN/ WAN port, 2.4G+5G dual-band WIFI-AP. 5G WiFi CPE is suitable for home or commercial scenarios that require rapid deployment of wired broadband networks and WIFI hotspots.

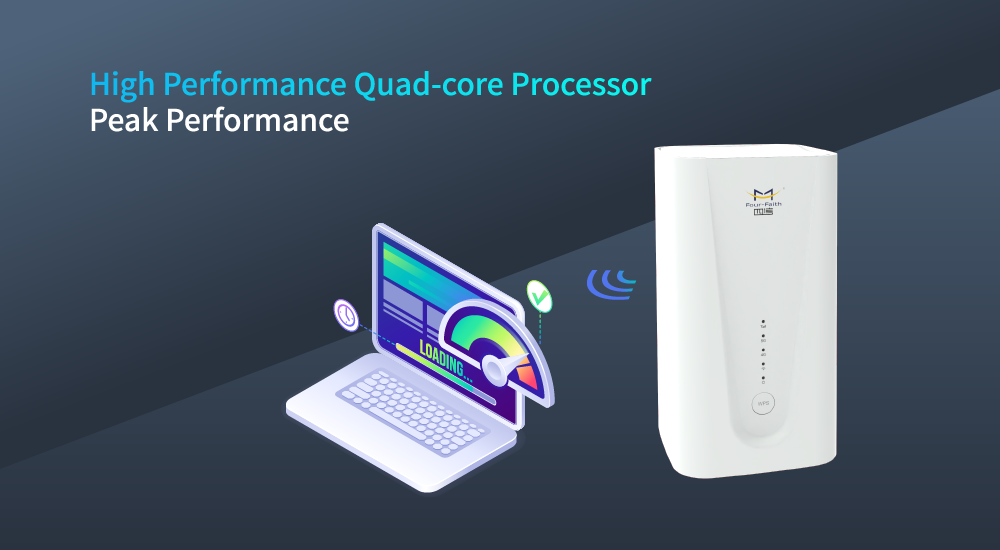

High Performance Processor

Ensure the high-speed processing performance of the 5G network, and strongly open the new era of 5G.

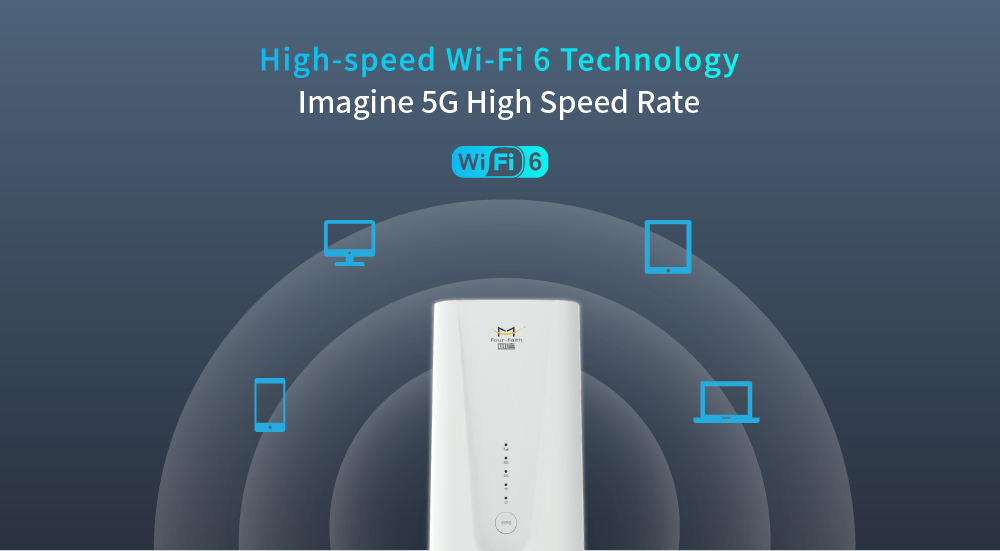

High-speed WIFI6 Technology

WiFi 6 is a new generation of WiFi standards that provides higher transmission rates, lower latency, and wider coverage for simultaneous communication between multiple devices.

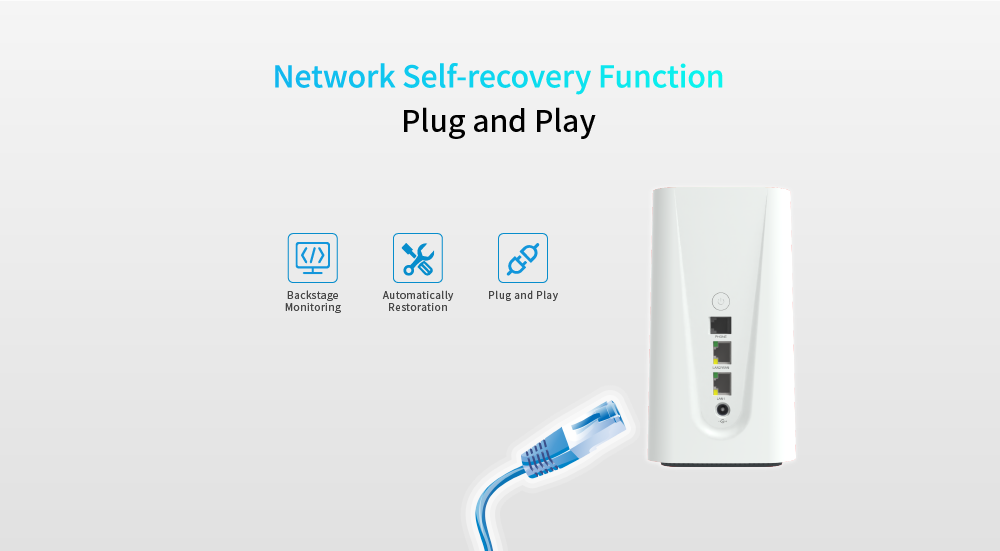

Plug and Play

The platform monitoring and automatically repairs network problems in real-time without manual restart or network reconfiguration, simplifying Internet access without manual intervention.

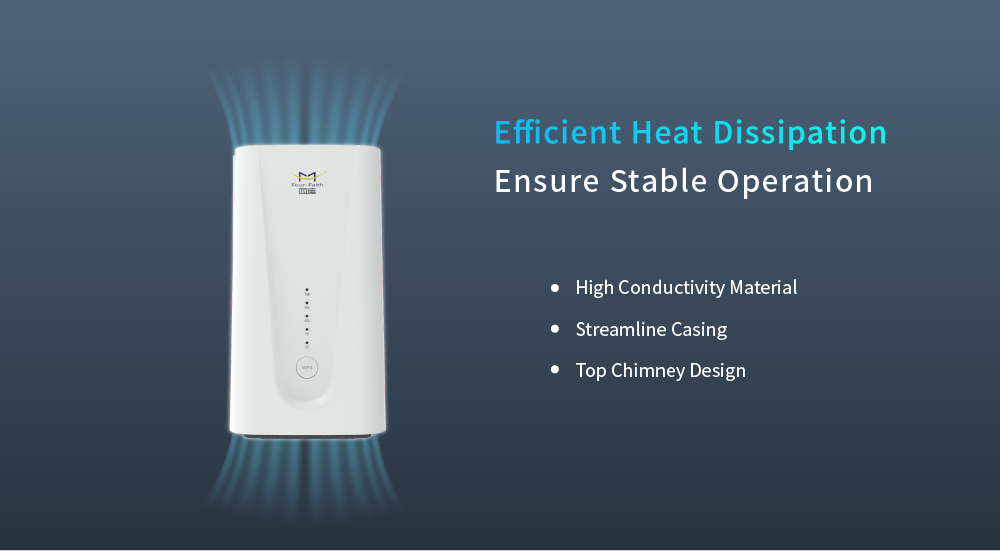

Efficient Heat Dissipation

Through fan convection, the heat dissipation effect can be greatly improved, and the stable operation can be guaranteed even in long time high-speed operation.

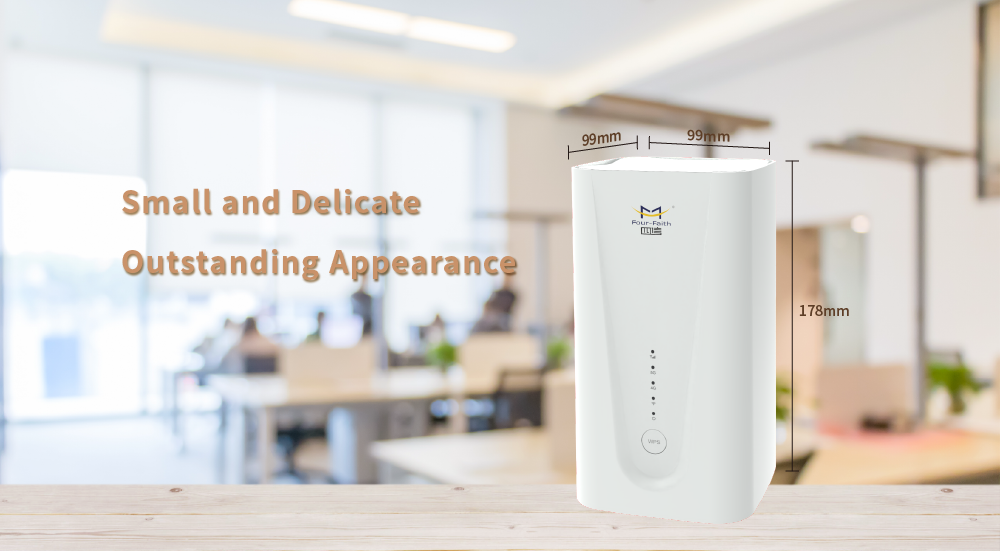

Compact Design

Lightweight, easy to carry, fast installation.

Product Specification

Cellular Specification
Items	Contents
Frequency Band	5G NR NSA：n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 5G NR SA： n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 LTE-FDD： B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD： B34/B38/39/B40/B41/B42/B43/B48 WCDMA：B1/B2/B3/B4/B5/B6/B8/B19 Remarks: Different modules support different network standards
MIMO	5G NR: DL 4 × 4 MIMO: n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 UL 2 × 2 MIMO: n41 LTE: DL 4 × 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
Theoretical Maximum Bandwidth	5G Sub-6：DL: 2.5 Gbps，UL: 600 Mbps LTE：DL: 1 Gbps，UL: 200 Mbps

Hardware
Items	Contents
CPU	MTK7621 CPU@880MHz,Dual-core
FLASH	128MB
DDR3	512MB
WIFI Specification
Items	Contents
WIFI Protocol	IEEE802.11 a/b/g/n/ac/ax
Frequency	2.4GHz+5GHz
Theoretical Maximum Bandwidth	2.4GHz 2x2MIMO 11ax,0.573 Gbps 5GHz 2x2MIMO 11ax, 1.2 Gbps
Channel Bandwidth	20MHz, 40MHz, 80MHz
Power Supply
Items	Contents
Standard Power Supply	DC 12V/3A
Power Supply Range	DC 9~24V
Working Current	< 1.1A (12V)
Interfaces
Items	Contents
LAN 2 / WAN	1 x 1G Ethernet (RJ45), auto MDI/MDIX
LAN 1	1 x 1G Ethernet (RJ45), auto MDI/MDIX
Telephone	1 x RJ11 (Optional)
Indicator	Signal, 5G, 4G, WIFI, Power
SIM Card	Nano-SIM interface
Power	Three-core DC locomotive power socket, built-in power reverse protection
USB	Type C 2.0
Reset Button	Through this button, the parameter configuration can be restored to the factory value
Physical Properties
Items	Contents
Shell	ABS Material
Dimensions	178x99x99mm
Weight	638g
Operating Temperature	0~+45ºC
Storage Temperature	-40~+85ºC
Humidity	95% (No-condensing)

Specification

F-NR300 V2 5G CPE Specification-V2.0.0

User Manual

Four-Faith 5G CPE F-NR300 User Manual V1.0.3
