GPS+Dual-Module Router F7946

●  Support GPS Positioning Function
●  LTE/WCDMA/TD-SCDMA/EVDO
●  Smart Link Switch Backup
●  Provide More Security Deployment Scenarios
●  Reliable Networking And Communication
●  GPS+Dual-Module router support APN/VPDN
●  Convenient configuration and maintenance interface
●  Support Local and Remote Firmware Upgrade

Trial Sample

Features
Specifications
Download

Smart Link Switch Backup
Provide multiple communication link backup functions: total 3 ways backup (2 ways wireless and 1 way wired), one primary and one backup primary and secondary backup, dual-link peer backup. When a link is blind, fluctuate, or even interrupt, switches to the other communication link quickly and automatically to ensure stable communication.

Provide More Security Deployment Scenarios
GPS+Dual-Module Router support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible

Reliable Networking And Communication
Using high-performance industrial-grade wireless module, industrial grade high stability and high precision components, -35 ~ +75 º C extremely wide temperature design, adapt to high-low temperature working environment and provide reliable networking and stable communication to unattended systems

Cellular Specification

Cellular Module	Industrial cellular module
Standard and Band	Main module: LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional) LTE TDD 2600/1900/2300MHz(Band 38/39/40) (800/1400/1800MHz(Band27/61/62)(optional) DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8) TD-SCDMA 2010/1900MHz(A/F frequency band,Band 34/39) CDMA2000 1X EVDO Rev A 800MHz,800/1900MHz(optional),EVDO Rev B 800/1900MHz(optional) 450MHz (optional) EDGE/GPRS/GSM 850/900/1800/1900MHz Standby module : LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional) LTE TDD 2600/1900/2300MHz(Band 38/39/40) (800/1400/1800MHz(Band27/61/62)(optional) DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8) TD-SCDMA 2010/1900MHz(A/F frequency band,Band 34/39) CDMA2000 1X EVDO Rev A 800MHz,800/1900MHz(optional),EVDO Rev B 800/1900MHz(optional) 450MHz (optional) EDGE/GPRS/GSM 850/900/1800/1900MHz
Bandwidth	LTE FDD: Download speed 100Mbps, Upload speed 50Mbps LTE TDD: Download speed 61Mbps, Upload speed 18Mbps DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
TX power	<23dBm
RX sensitivity	<-97dBm

GPS Specification

Item	Content
GPS Module	Industrial GPS module
Receiver Type	50-channel GPS L1(1575.42MHz)C/A code SBAS: WAAS,EGNOS,MSAS,GAGAN Support GALILEO
Max. update rate	4 Hz
Accuracy	Position: 2.5m CPE SBAS: 2.0m CPE
Acquisition	Cold starts: 29S Warm starts: 29S Aided starts: <1S Hot starts: <1S
Sensitivity	Tracking: -160dBm Reacquisition: -160dBm Cold starts: -144dBm
Timing accuracy	RMS: 30ns 99%: <60ns Granularity: 21ns
Time pulse	Configurable, 0.25 to 1000Hz

Hardware System

Item	Content
CPU	Industrial 32bits CPU
FLASH	16MB(Extendable to 64MB)
DDR2	128MB

Interface type

Item	Content

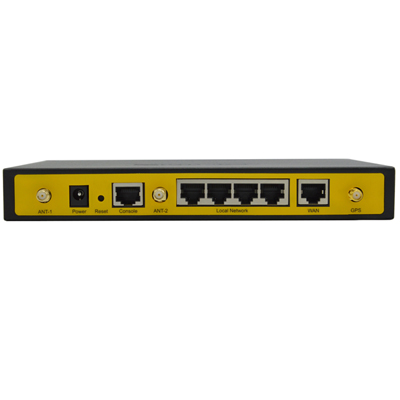

WAN	1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN	4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial	1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps

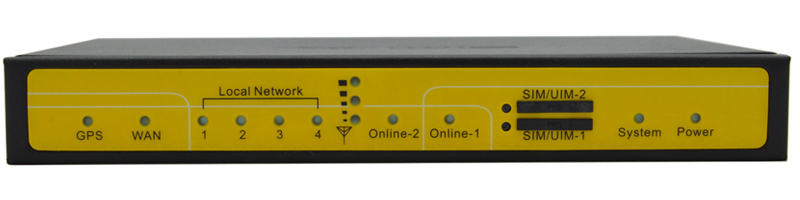

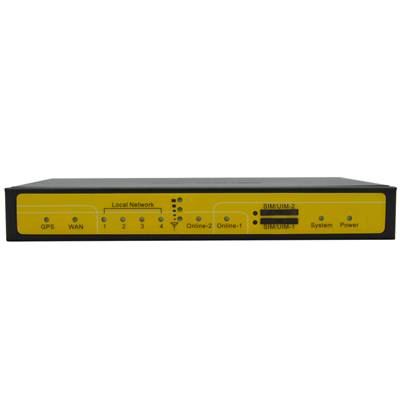

Indicator	"Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "GPS", "Signal Strength"
Antenna	Cellular: 2 Standard SMA female interface, 50 ohm, lighting protection(optional) GPS: Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset	Restore the router to its original factory default settings

Power supply

Item	Content
Standard Power	DC 12V/1.5A
Power range	DC 5~36V

Consumption

Working condition	Consumption
Standby	290～360mA@12VDC
Communication	340～610mA@12VDC
Schedule Shutdown	2.57~4.2mA@12DVC

Physical Characteristics

Item	Content
Housing	Iron, providing IP30 protection
Dimensions	207x135x28 mm
Weight	825g

Environmental Limits

Item	Content
Operating Temperature	-35~+75ºC(-31~+167℉)
Storage Temperature	-40~+85ºC (-40~+185℉)
Operating Humidity	95% ( unfreezing)
