Bulid-in Battery Bullet Camera F-SC921

Standard ports: RS232, RS485, and customized IoT ports
Power source: built-in battery, F-SC921 supports solar power
Industrial-grade design: highly efficient industrial processor and wireless module
Other specifications: the F-SC921 smart HD camera supports up to 140dB wide dynamic range to ensure all the bright and dark areas are well-presented

Trial Sample

Features
Specifications
Download

Four-Faith F-SC921 smart HD network camera

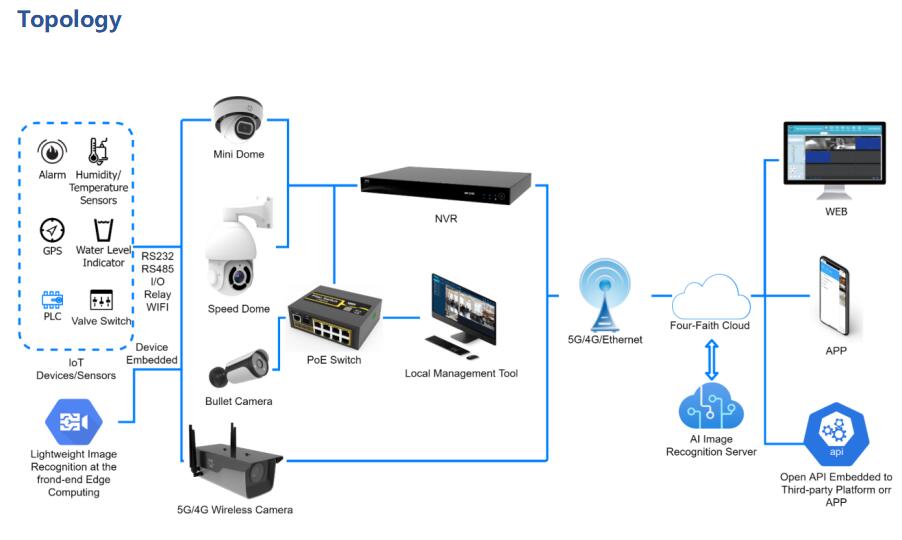

● Four-Faith's F-SC921 is a smart HD network camera. It is a main part of the smart IoT monitor system. The F-SC921 is developed and designed especially for industrial IoT applied scenarios.

● Four-Faith’s F-SC921 network camera has been widely used in smart fields like factory automation, commercial buildings, airports, and other public places, etc.

Product Specification

Camera
Model	F-SC921 (Fixed Len)
Items	Contents
Lens	Fixed Lens 2.8mm @F2.0
Field of View	H123°/D142°/V68°
Shutter Time	1/100000s~1/5s
IR Distance	50m
Day & Night	ICR Filter Auto Switch
Video
Items	Contents
Max. Image Resolution	1920×1080 / 2650×1920
Primary Stream	30fps@(1920×1080, 1280×960,1280×720, 704x576)
Secondary Stream	30fps@(704x576, 640×480, 640×360, 352x288, 320x240, 320x192, 320x176 )
Tertiary Stream	30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320x192, 320x176 )
Video Compression	H.265(HEVC)/H.264/MJPEG
Bit Rate	16Kbps~16Mbps (CBR/VBR Adjustable)
Image Setting	Brightness/Contrast/Saturation/Sharpness

Network
Items	Contents
Ethernet	1*RJ45 10M/100M Ethernet Port
Network Storage	NAS (Support NFS, SMB/CIFS)
Protocol	IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DHCP, NTP, SNMP, NFS, CIFS
System
Items	Contents
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 512G
Advanced Function	Motion Detection, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Anti-fog, White Balance, EIS, IP Address Filtering
Event Trigger	Motion Detection, Network Disconnection, External Input, etc.
Event Action	FTP Upload/SMTP Upload/SD Card Record
Video Analysis (Optional)	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed (* In development)
Cellular (Optional)
Items	Contents
Standard & Band	5G, LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
Bandwidth	5G NR: Downstream rate 3.4Gbps, uplink rate 350Mbps FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps
Transmit Power	<23dBm
Sensitivity	<-97dBm
GPS (Optional)
Items	Contents
GPS Module	Industrial GPS module，compatible with Beidou, GLONASS
Accuracy	Positioning: 2.5m CPE SBAS: 2.0m CPE
Sensitivity	Tracking: -160dBm Recapture: -160dBm Cold Boot: -146dBm

*Interfaces ( = Optional )**
Items	Contents
DC-12V IN*	Battery Version: Standard DC12V charging adapter (DC 5.5*2.5mm) Non Battery Version: Optional 12-60V wide voltage input (terminal connector)
Audio I/O @Audio Compression*	1/1&G.711/AAC
IO & Relay*	2 x DI, 2 x DO, 2 x Relay
ADC	2@12bit
UART*	2 x RS232 & 2 x RS485
Power Return*	12V@500MA & 5V@1000MA
Storage*	Internal Micro SD Slot, support Micro SD/Micro SDHC/Micro SDXC card (Support Maximum 512G)
Network	1 x RJ45 (POE)
Interface Type	M16 Waterproof Interface
Protocol & Industrial Standard
Items	Contents
Protocol & Industrial Standard	Onvif Profile S GB/T28181-2016 Modbus RTU MQTT IEC101, IEC104 (*In development)
Battery
Items	Contents
Battery Type	Ternary lithium battery
Battery Parameter	Rated capacity 7.8Ah Rated voltage 11.1V Maximum charge/discharge current 4A/4A Charge/discharge cut-off voltage 12.6V/8.25V
Battery Metering Module	Yes

Others
Items	Contents
Working Temperature	-35℃~75℃
Working Humidity	0~90% (Non-condensing)
Power Supply	PoE (802.3at)
Power Consumption	Standby < 0.3W 4G Date Mode < 4W 4G Night Mode < 6W
Protection Level	IP67
Explosion-proof	IK09
Weight	2.5 KG

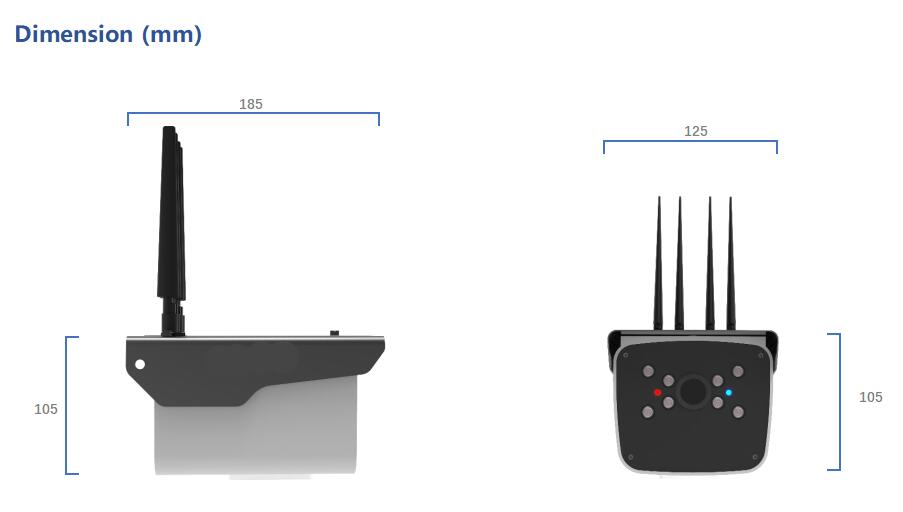

Dimensions	185125105mm （Without Accessories）
Warranty	1 Year

Order Information

Models	Megapixel	Lens	Description
F-SC921-21-4GGP	2MP	Fixed Lens	SD, DC&POE, 4G High-speed Module
F-SC921-21-4GSL	2MP	Fixed Lens	SD, DC&POE, 4G High-speed Module, Solar Charging
F-SC921-21-5GGP	2MP	Fixed Lens	SD, DC&POE, 5G High-speed Module
F-SC921-21-5GSL	2MP	Fixed Lens	SD, DC&POE, 5G High-speed Module, Solar Charging
